Aardwolf Handy Vacuum Lifter - ABHVL-500
General

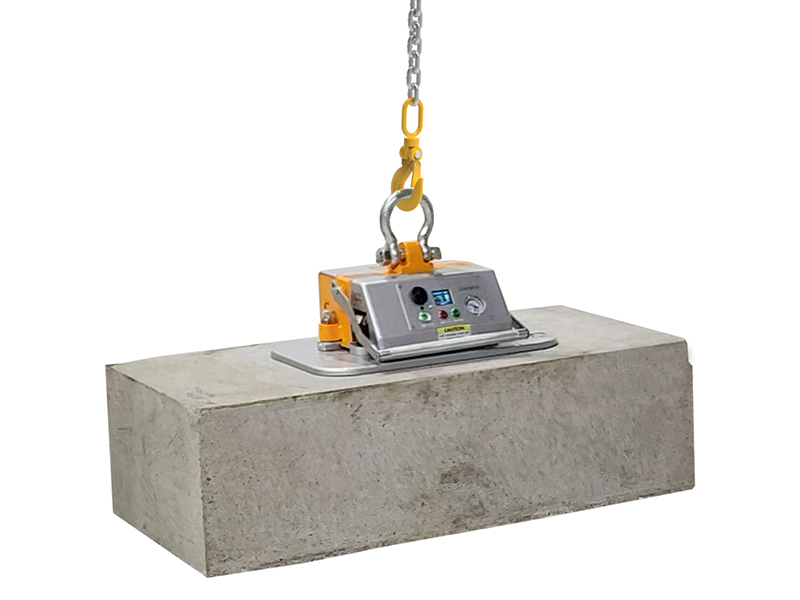

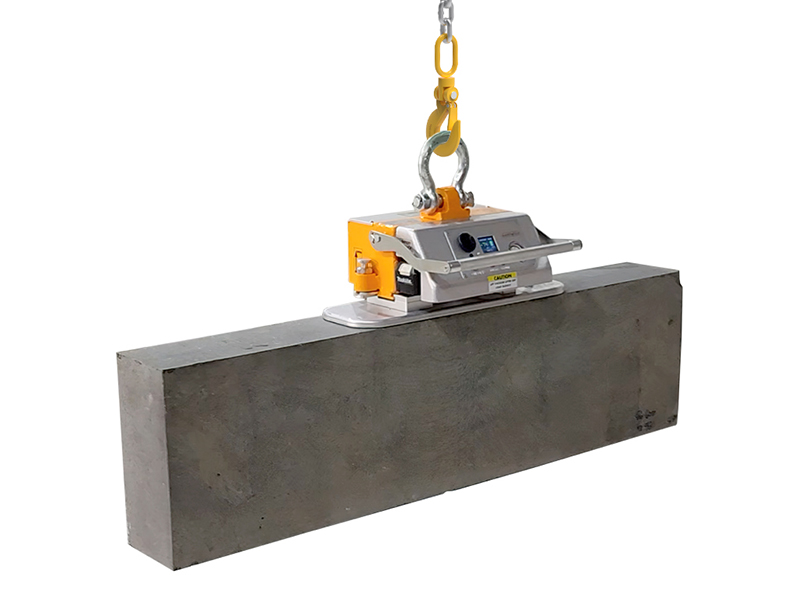

The Aardwolf Battery Handy Vacuum Lifter (ABHVL-500) is a compact and durable lifting device designed for handling heavy stone and concrete materials. It operates on a high-performance battery-powered vacuum system that eliminates the need for external air supply.
With a lifting capacity of up to 1,100 lbs, the lifter is suitable for a variety of materials, including both smooth and rough surfaces. The quick-change battery allows continuous use throughout the workday, and the unit can be easily attached to a crane or hoist hook for flexible operation on different job sites.
Key Features
Lifting Capacity: Up to 1,100 lbs depending on pad size.
Battery-Powered Vacuum System: Generates vacuum through an integrated pump, removing the need for pneumatic hoses.

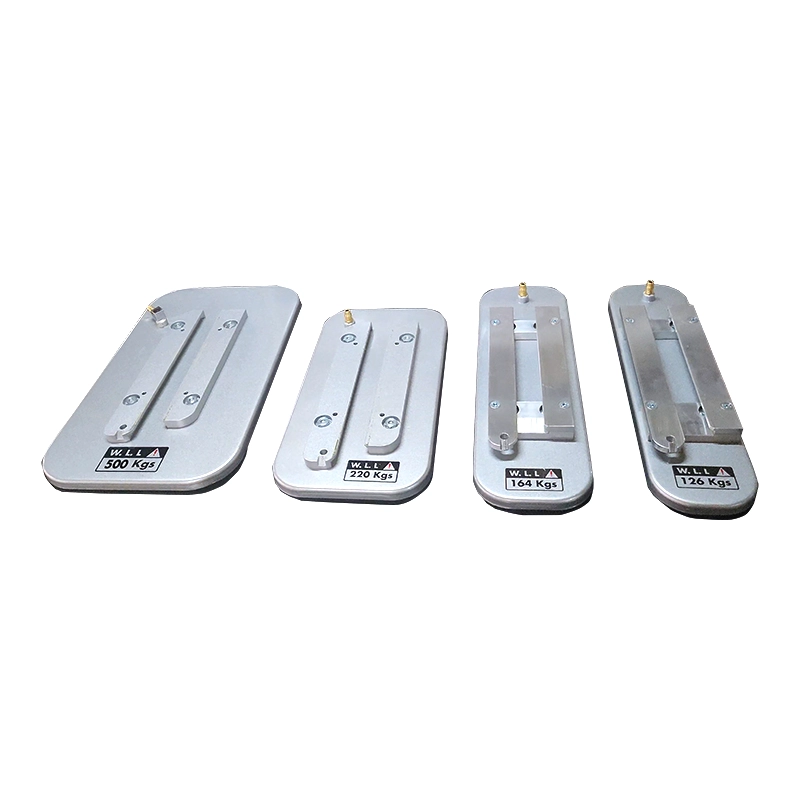

Interchangeable Pads: Available in four sizes to meet different load requirements.
Quick Pad Change: Allows fast replacement of pads without tools.

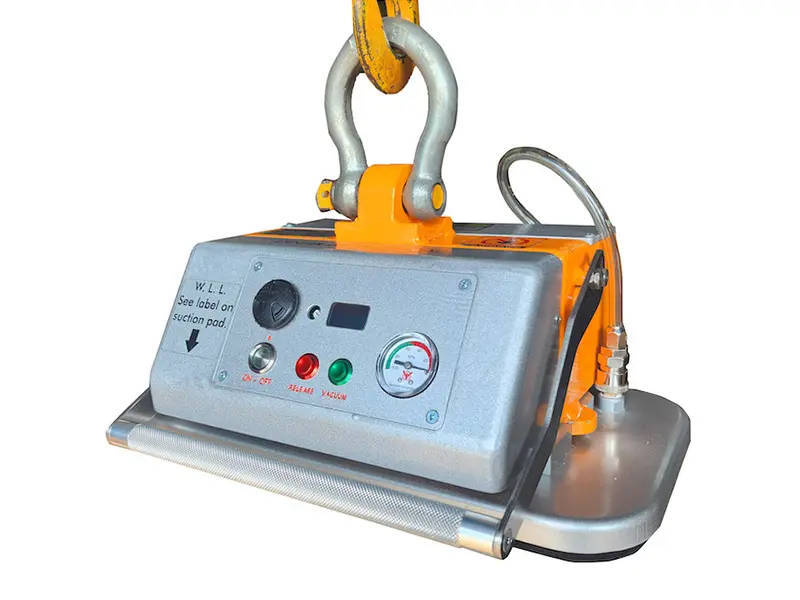

One-Button Operation: Simplifies lifting and release functions.
Visual Monitor and Alarm: Provides real-time vacuum level feedback and safety alerts.
Battery Backup: Ensures continuous operation during power interruptions.
Specifications
Imperial | |
| Working load limit | 19 3/4" x 4 7/8": 278 lbs 19 3/4" x 5 7/8": 362 lbs 16 1/2" x 8 5/8": 485 lbs 19 3/4" x 11 3/4": 1102 lbs |
| Net weight | 46 lbs |
| Gross weight | 57 lbs |

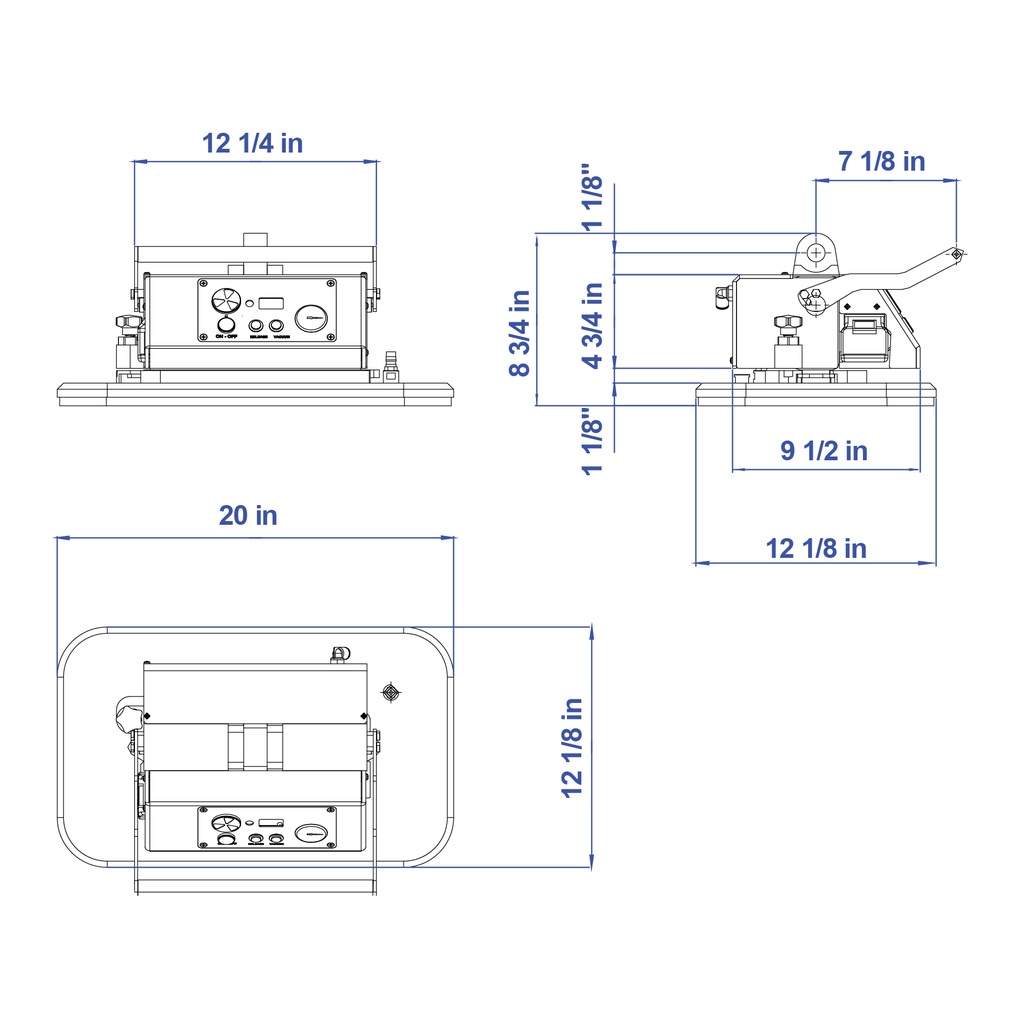

| Packaging dimensions | 21 5/8" x 13 3/4" x 10 5/8" |
Battery Information
Parameter | Value |
Battery capacity | 12V – 6Ah |
Charging time | 2.5 hours (full charge) |
Battery lifespan | 800–1000 charge cycles |
Operating time | Up to 3 hours continuous use |
Aardwolf Handy Vacuum Lifter
Watch our comprehensive product demonstration video showing how to use Aardwolf Handy Vacuum Lifter. Learn about key features, benefits, and setup instructions.
Watch full tutorial on YouTube
