Aardwolf Battery Vacuum Lifter - ABRV-180
General
The Aardwolf Battery Vacuum Lifter (ABRV-180) is a battery-powered vacuum lifter designed to integrate directly with cranes and hoists. It has a working load limit of 353 lbs and provides 180° rotation, with all lifting, lowering, and rotation functions controlled through an integrated steering-wheel style control panel.
The ABRV-180 is equipped with a high-performance vacuum pump to ensure reliable suction for a wide range of flat materials. Additional features include a self-balancing system, a robust electric cylinder, a cooling fan for high-duty cycles, and a 24V quick-swap battery that enables continuous operation. Supporting elements such as measuring scales and locking handles for vacuum pad adjustment, an integrated support stand, and an ergonomic handle enhance precision, stability, and ease of use in both workshops and job-sites.
Features
- High-performance vacuum pump – Provides strong, stable suction for reliable load handling.
- Self-balancing system – Keeps loads stable and easier to handle.
- Electric cylinder – Ensures smooth and precise lifting/lowering.
- Linear rotation control – Operators can adjust rotation speed and angle as required.
- Safety monitoring – Audio-visual alerts for vacuum pressure and battery status.
- 24V quick-swap battery – Enables battery replacement within seconds for uninterrupted operation.
- Adjustable vacuum pads – With integrated measuring scale and locking handles for quick adjustment.
- Integrated support stand – Provides stability when not in use, convenient for storage and maintenance.
- Ergonomic handle – Designed for comfortable operation over extended periods.
- Wireless crane control – Compact and modern control without separate wired remotes.
Notes
Compatible with Aardwolf cranes & hoists (optional).
Dual-position fabrication table available as an optional accessory.
Specifications
|
Item |
Details |
|
Model |
ABRV-180 |
|
Working Load Limit (WLL) |
353 lbs |
|
Rotation |
180°, linear control |
|
Battery |
24V quick-swap clip-in |
|
Net weight |
289 lbs |
|
Lifting Mechanism |
Electric cylinder |
Aardwolf Battery Vacuum Lifter

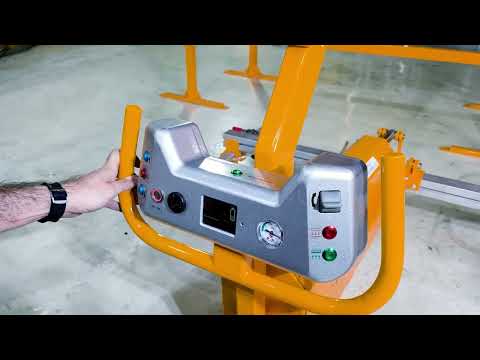

Watch our comprehensive product demonstration video showing how to use Aardwolf Battery Vacuum Lifter . Learn about key features, benefits, and setup instructions.
Watch full tutorial on YouTube
