Fork Mounted Vacuum Lifting Attachments - FMVLAC2

General

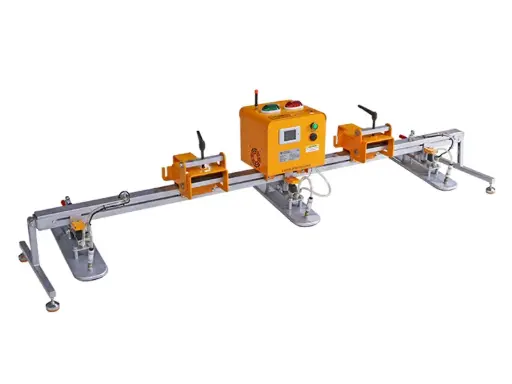

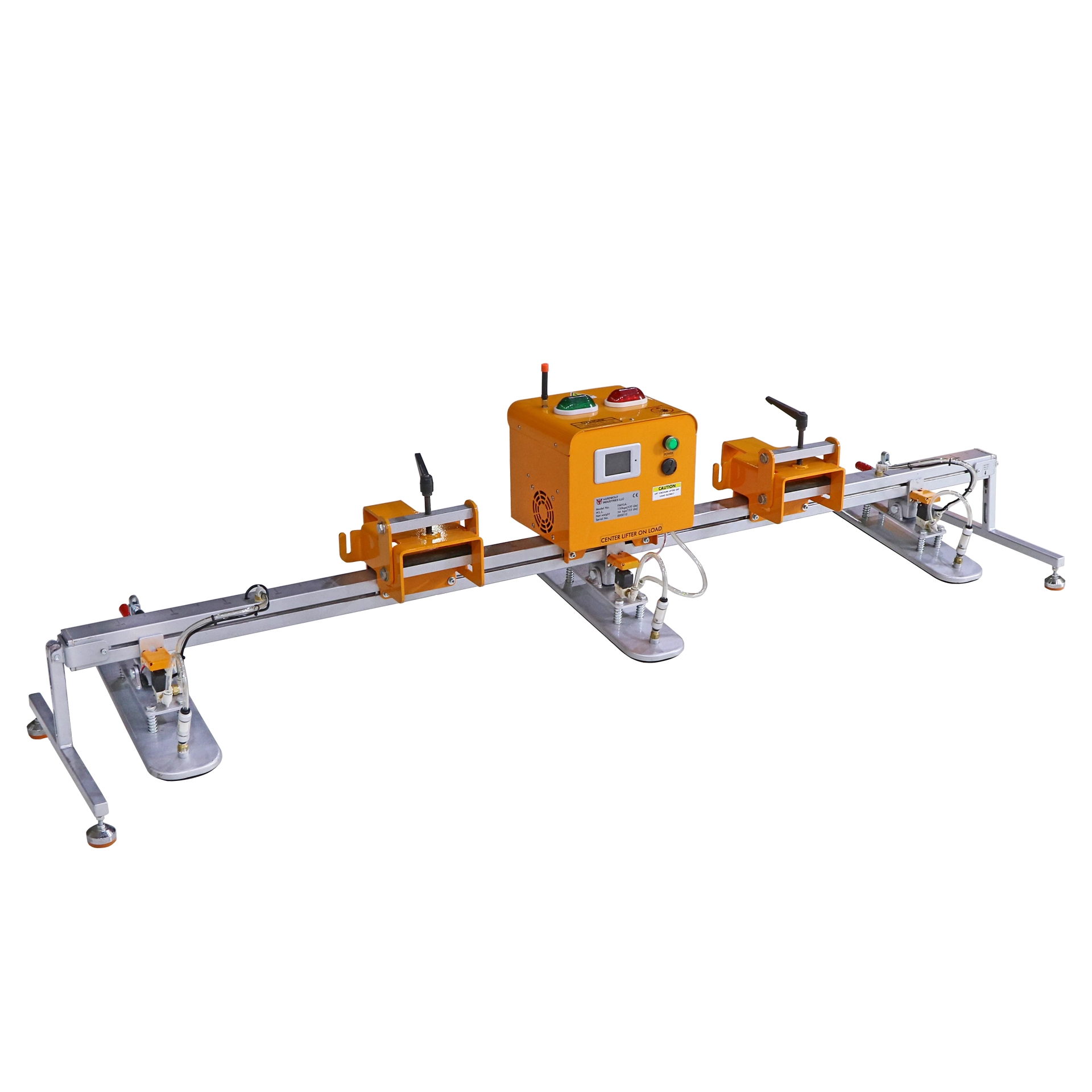

The Aardwolf Fork Mounted Vacuum Lifter (FMVLAC2) is a lightweight attachment for handling flat, non-porous materials such as stone, glass, or metal sheets. It mounts to standard forklift tines and uses a 3-pad vacuum system to lift loads up to 150 kg. The unit features remote control operation and a control box with visual and audible indicators for monitoring vacuum pressure. FMVLAC2 is suitable for workshop and job site applications requiring forklift-mounted lifting.

Features

3-Pad Vacuum System: Each pad includes its own filter and valve for effective suction.
Load Positioning and Balance: Built-in measuring scale and self-locking stand ensure stable lifting.
Easy Adjustments: Tool-free clamp adjustments for quick pad placement.
Vacuum Pressure: Monitoring Control box displays real-time pressure with audio-visual alerts.
Wireless Remote Control: Operate the system from a distance for greater safety and convenience.

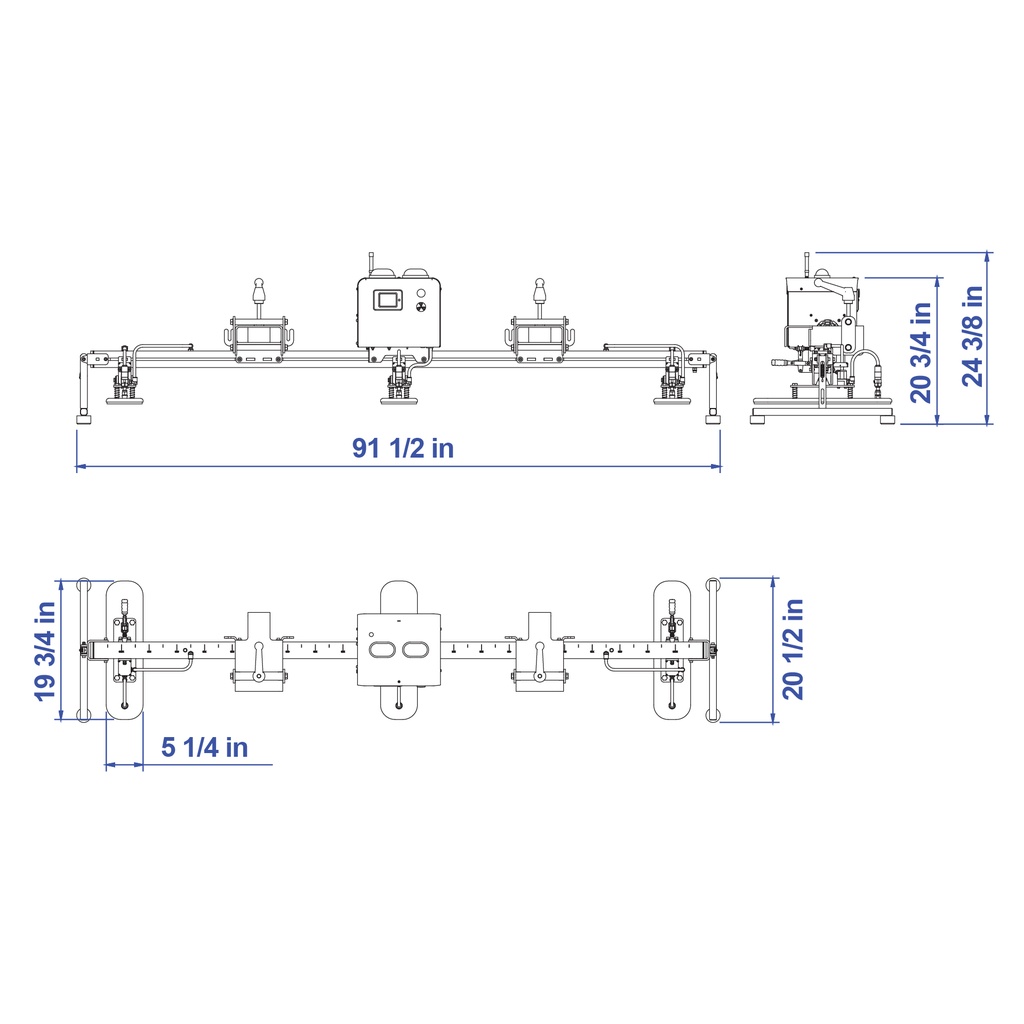

Specifications

FMVLAC2	Imperial
Number of pads	3
Pad sizes	19 3/4 x 5 1/4"
Working load limit	331 lbs
Net weight	143 lbs
Gross weight	220 lbs
Packaging dimensions	94 1/8 x 23 5/8 x 29"

Battery Information

Power supply	24V Lithium battery
Standby time	>100 hours
Charging cycle	1000 times
Charging time	5 hours
Vacuum pump’s continous working time	3 hours

Motor Information

Vacuum flow rate	70 litters/ minutes
Motor	24V – 4.5A
