Bundle Rack Kit - ABR1200
General

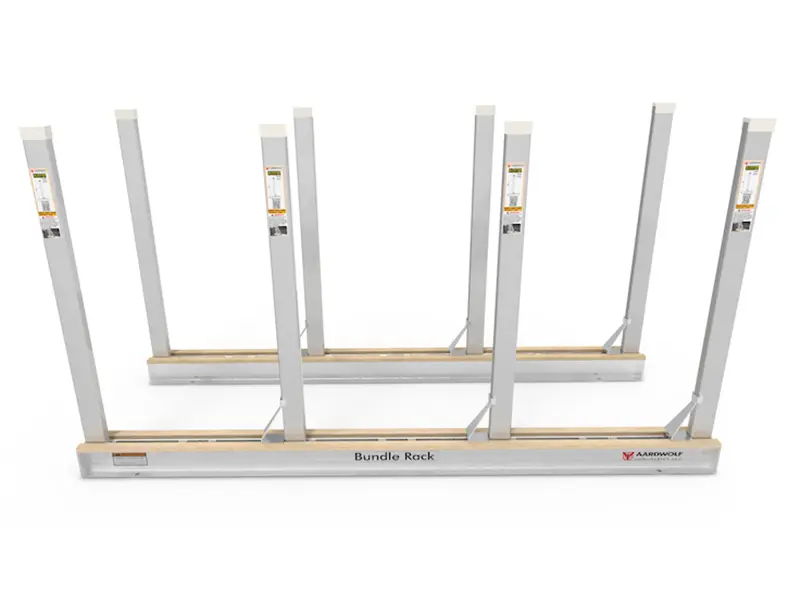

Aardwolf provides the Bundle Rack Kit, which contains a pair of galvanized steel rails 3m long, with rectangular galvanized steel tube posts and steel post bases. The rectangular post can be positioned in the pockets along the rack. All posts are manufactured from rectangular tube steel with a minimum yield strength of 345Mpa and a 5mm wall thickness, ensuring safety for the vertical storage of slab bundles.
Features
The bases and seven holes are folded steel, making the rack lightweight.

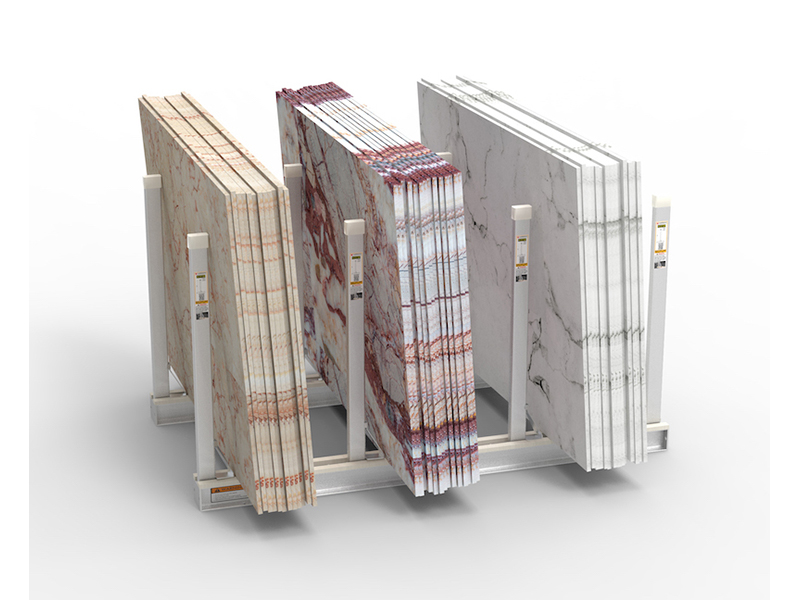

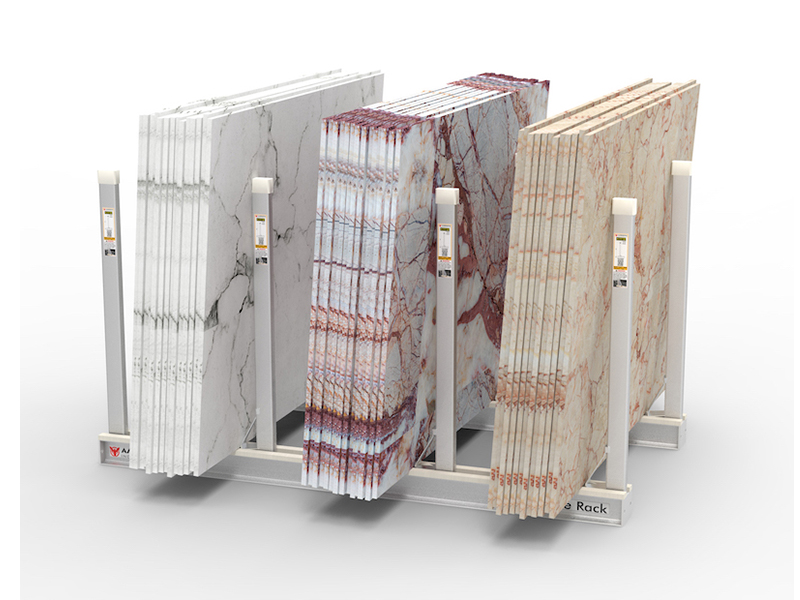

The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.

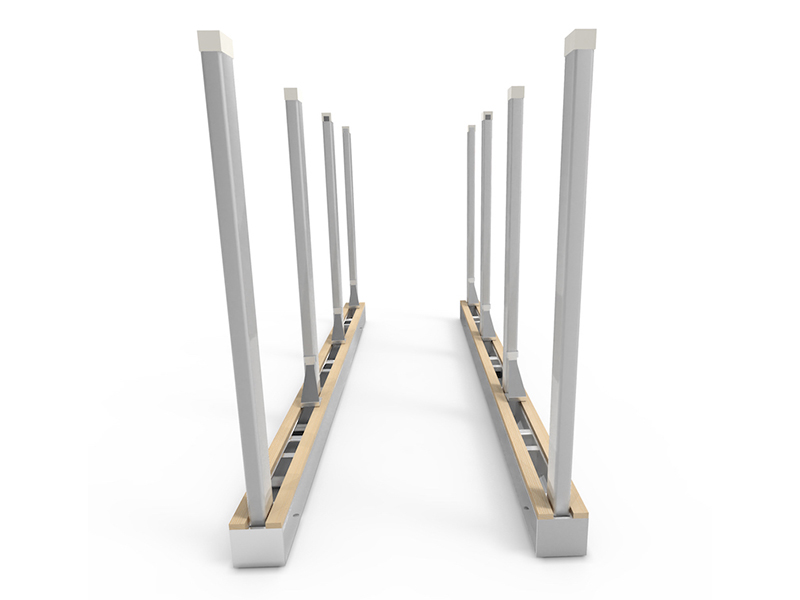

The bundle rack rail is combined with eight steel tube posts, which have a height of 1200 - 1600 mm and suitable steel post bases.
This rack is the best storage solution, offering cost-saving and economic effects for users.
Aardwolf has developed a simple calculator to calculate the slab storage capacity precisely.
To view the Slab Rack Storage Calculator, click here
Specifications
ABR1200
| ..................................... | Qty | Imperial ..... |
| Galvanized steel rail | 2 | 118 5/8"x6 5/8"x5 1/2" |
| Rack height | 6 1/4" | |
| Rectangular hole | 4"x2" | |
| Increment | 4 3/8" | |
| Steel tube post | 8 | 4"x2"x47 1/4" |
| Steel post base | 6 | 47 1/4"-55 1/8" |
| Posts wall thickness | 1/4" | |
| Rectangular rubber cap | 8 | 4"x2" |
| Timber battens per rail | 2"x3/4" |
