General
Anchor Machines manufactured by Aardwolf Industries LLC featuring two models, pneumatic or electric grinders with a vacuum-powered base. Used to cut T-slots in the back of vanity tops for the attachment of anchor bolts used in under-counter sinks or architectural facing systems. Two separate vacuum zones on the base can be turned on or off, enabling the machine to be used near edges.
Features
Industrial quick-couplers for both air and water.
Combination port that allows vacuum to be applied with compressed air via the built-in venturi vacuum generator.
The grinders accept any T diamond bit with a 6mm shank.
A water hose with a ball valve and quick-coupler can be quickly detached and used to spray the work area.
Machine cuts in both push and pull directions.
Alignment indicators on the machine base.
Machined, anodised aluminium components.
Molded rubber vacuum base seal.
Note: The Portable Water Supply Tank is sold upon request.
Specifications

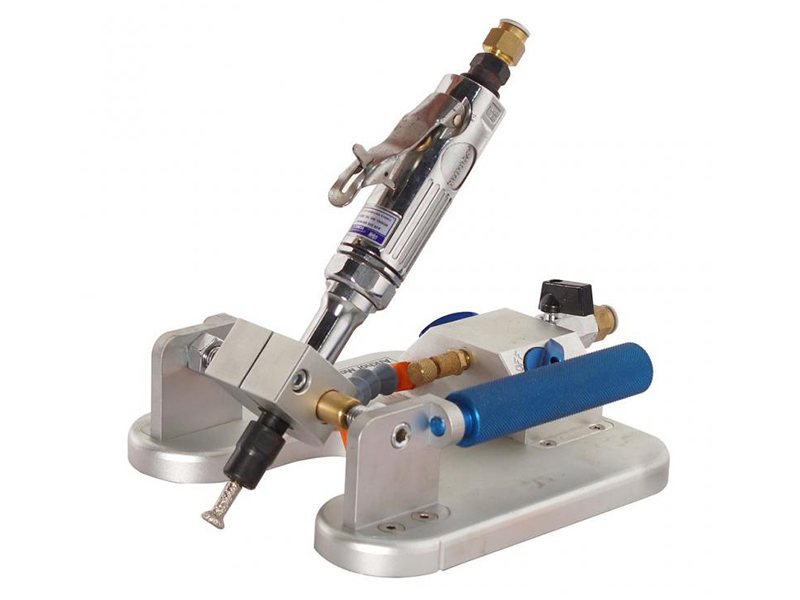

Pneumatic Anchor Machine APAM
Metric Imperial Net weight 3 kg 7 lb Collet diameter 6 mm 1/4" No load speed 25,000 RPM Water connection hose thread 1/4" PT Air connection 1/4" industrial series coupler plug Vacuum base -80 kPa vacuum

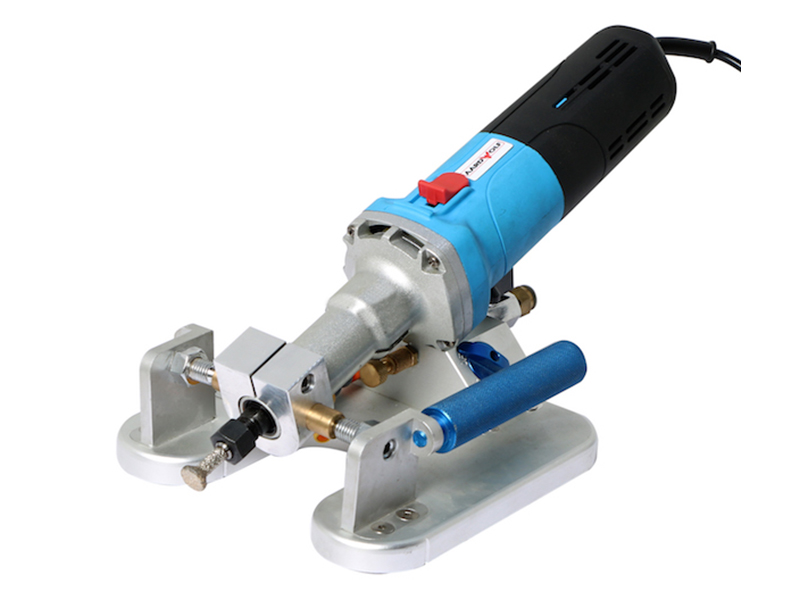

Electric Anchor Machine EAM
Metric Imperial Net weight 4 kg 9 lb Collet diameter 6 mm 1/4" No load speed 30,000 RPM Aardwolf Powerful 750W Motor Water connection hose thread 1/4" PT Air connection 1/4" industrial series coupler plug Vacuum base -80 kPa vacuum
Specifications
| Opciones de Fuente de Energía | Pneumatic Anchor Machine APAM or Electric Anchor Machine EAM |
