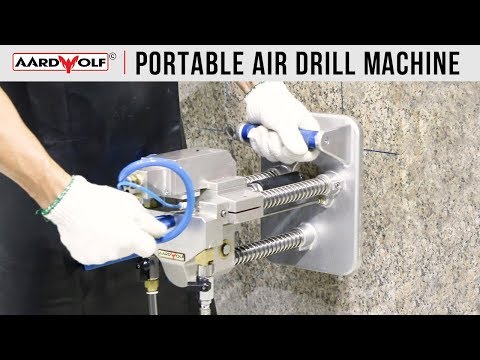

Portable Air Drill Machine APADM – Description
General
The Aardwolf Portable Air Drilling Machine is a lightweight, versatile drill made of aluminium to reduce weight. It features an integrated vacuum base, making it instantaneous to set up with no need for anchoring or clamping. The Aardwolf Air Drilling Machine quickly attaches to both smooth and rough flat surfaces once the vacuum is applied. This drilling machine is suitable for use on vertical and horizontal surfaces, whether the surface is cement, stone, glass or metal. The vacuum base provides stability.
Features
The machine has stepless speed regulation and the max free speed is 1,200rpm.
Conveniently placed water nozzle ensures that the drill bit is kept cool during drilling.
The Drilling Depth Control design can show or set the depth that you are drilling.
Three-speed control switch.
The Aardwolf Portable Drilling Machine has an integrated vacuum base that can be mounted on cement, stone, glass or metal.
Specifications
Metric | Imperial | |
| Net weight | 10 kg | 22 lb |
| Gross weight | 14 kg | 31 lb |
| Packaging dimensions | L.260 x W.260 x H.535 mm | L.10 1/4" x W.10 1/4" x H.21" |
| Max free speed | 1,200 rpm |
| Max drill bit length | 125 mm (4 7/8") |
| Vacuum base dimensions | 240 x 180 mm (9 1/2" x 7 1/8") |
| Drilling bore size | 50 mm (2") |
| Chuck diameter | 1 - 16 mm (0.03"-5/8") |
| Weight | 8.2 kg |
| Product dimension | 233 x 233 x 392 mm (9 1/8" x 9 1/8" x 15 3/8") |
| Working pressure | 6.3 kgf/cm² (90 psi) |
| Air inlet thread | 1/4" |
| Hose size | 10 mm (3/8") |
| Air cons | 0.56m³/min (20 SCFM) |
| Sound pressure | 88 dBA |
