AVGLP Vacuum Glass Lifters

Description

General

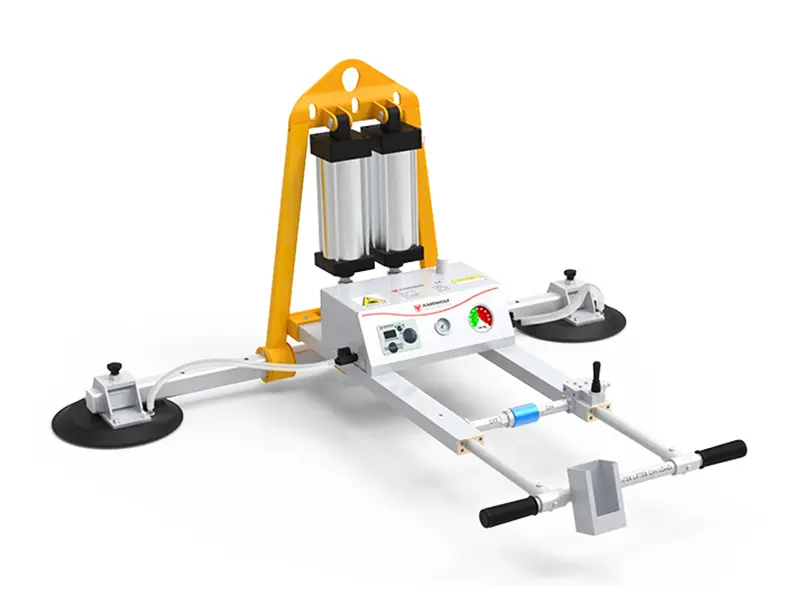

The Aardwolf Vacuum Glass Lifters are pneumatically powered vacuum lifters designed to handle glass and porcelain sheets. Featuring a rugged build, it offers vertical-horizontal tilting from 0 to 90 degrees, making it ideal for secure lifting in various applications.

Features

Pneumatic vertical-horizontal tilting from 0 to 90°.
Automatic vacuum pumping if vacuum loss occurs.
Audio/visual warning system.
Attach/release materials using the ON/OFF slide valve.

Specifications

Vacuum Glass Lifter AVGLP2-200

	Metric	Imperial
Number of pads	2	-
Pad diameter	Overall: 300 mm	11 3/4"
Working load limit	200 kg	441 lb
Net weight	64 kg	141 lb
Packaging dimensions	L.1480 x W.430 x H.960 mm	L.58 1/4" xW.16 7/8" x H.37 3/4"

Vacuum Glass Lifter AVGLP4-400

	Metric	Imperial
Number of pads	4	-
Pad diameter	Overall: 300 mm	11 3/4"
Working load limit	Vertical: 200 kg Horizontal: 400kg	441 lb 882 lb
Net weight	79 kg	174 lb
Packaging dimensions	L.1480 x W.380 x H.960 mm	L.58 1/4"x W.15" x H.37 3/4"

Vacuum Glass Lifter AVGLP4-400L

	Metric	Imperial
Number of pads	4	-
Pad diameter	Overall: 300 mm	11 3/4"
Working load limit	Vertical: 200 kg Horizontal: 400 kg	441 lb 882 lb
Net weight	82 kg	181 lb
Packaging dimensions	L.2580 x W.430 x H.960 mm	L.101 5/8" x W.16 7/8" x H.37 3/4"

Vacuum Glass Lifter AVGLP8-800

	Metric	Imperial
Number of pads	8	-
Pad diameter	Overall: 300 mm	11 3/4"
Working load limit	Vertical: 400 kg Horizontal: 800 kg	882 lb 1764 lb
Net weight	108 kg	238 lb
Packaging dimensions	L.2050 x W.430 x H.960 mm	L.80 3/4" x W.16 7/8" x H.37 3/4"

Battery information for the alarm system

Battery code	GBA 12V 2.0Ah Bosch
Battery type	Lithium-ION
Voltage	12V
Current	2.0Ah
Quantity	1
Continuous operation time with mode-saving pressure	2 hours
Working time with mode saving pressure	6 hours
Continuous operation time with mode audio alarm only	120 hours
Working time with mode audio alarm only	360 hours

Compressed air requirement

Air consumption	180 liters/minute
Supply air pressure	5 bars (72 psi)
