Vacuum Lifter AVLM2/500

General

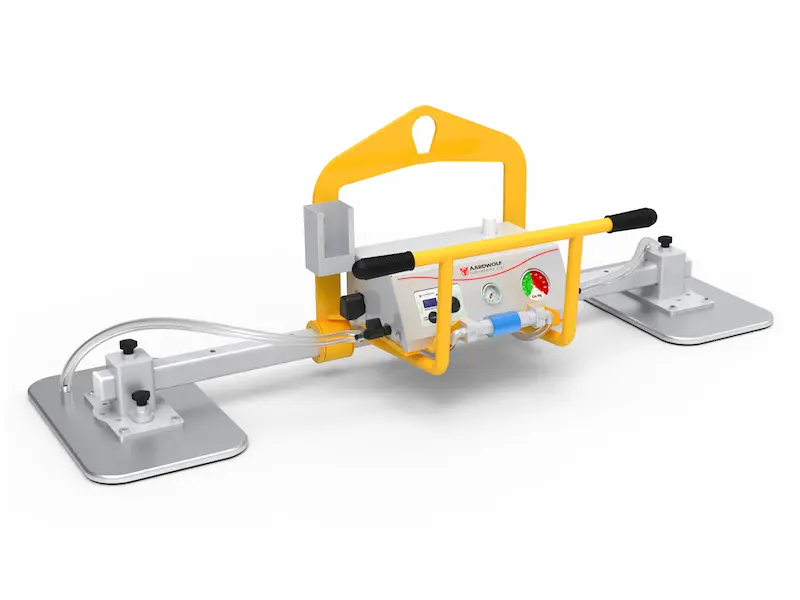

The Aardwolf Vacuum Lifter AVLM2, powered by compressed air, is designed to lift smooth or rough marble, granite limestone, sandstone and concrete slabs.  Featuring rugged construction with the ability to lift and tilt materials, this Vacuum Lifter has been perfected by adding an energy saver, which saves energy and reduces the vacuum lifter's noise level.

Features

• The metal structure is tilted from 0 to 90° manually.


• The vacuum lifter comes standard with rotating pads, allowing the operator to quickly rotate the vacuum pads to 45° and 90°.

• Compressed air-operated vacuum pump at a pressure of 5-6 Bars.

• Generous size vacuum tank ensures safe pickup in case of a sudden power break to the pump.

• A rechargeable battery powers the audio and visual alarm system.

• Comes standard with an energy saver.

• Slider valve with ON/OFF position for attaching material to vacuum pads and releasing material from vacuum pads.


Specifications

	Metric	Imperial
Number of pads	2	-
Pad size	500 x 300 mm	19 3/4" x 11 3/4"
Working load limit	Vertical: 250 kg Horizontal:500 kg	551 lb 1102 lb
Net weight	48 kg	106 lb
Gross weight	86 kg	190 lb
Packaging dimensions	L.1480 x W.460 x H.820 mm	58 1/4" x 18 1/8" x 32 1/4"




Battery information for the device

Battery code	GBA 12V 2.0Ah Bosch
Battery type	Lithium-ION
Voltage	12V
Current	2.0Ah
Số lượng	1
Continuous operation time with mode-saving pressure	2 hours
Working time with mode saving pressure	6 hours
Continuous operation time with mode audio alarm only	120 hours
Working time with mode audio alarm only	360 hours


Battery charger

Battery code	GAL 12V-40 Bosch
Input supply voltage	220-240VAC
Output voltage	12V
Output current	4.0Ah
Số lượng	1
Full charger time	0.5 hour
Weight	460 gram


Compressed air requirement

Air consumption	180 liters/minute
Supply air pressure	5 bars (72 psi)
