Paving Stone Lifter APSL – Description
General
When installing pavers, the Paving Stone Lifter saves time and reduces stress on the back and knees. It can also be used with concrete, sandstone, slate, etc. The safe lifting height recommended when using the Paving Stone Lifter is no more than 75mm (3”) to 125mm (5”) above the work area.
Feature
The head is constructed with heavy-duty aluminium.
A complete line of interchangeable heads is available in different sizes for lifting various types and sizes of materials.
Visual low vacuum alert.
Specifications
Metric | Imperial | |
Pad sizes with W.L.L | 276x176mm: 110kg 186x86mm: 28kg | 10 7/8''x6 7/8'': 242.5 lbs 7 3/8''x3 3/8'': 62 lbs |
Net weight | 16kg | 35.3 lbs |
Gross weight | 36 kg | 79.4 lbs |
Packaging dimensions | 720 mm 420 mm 770 mm | 28 3/8'' 16 1/2'' 30 1/4'' |
Battery information for the device
Battery capacity | 24VDC-8Ah |
Non-stop working time | 4 hours |
Motor information
Vacuum flow rate | 38 liters/minute |
Motor | 24VDC - 2A |

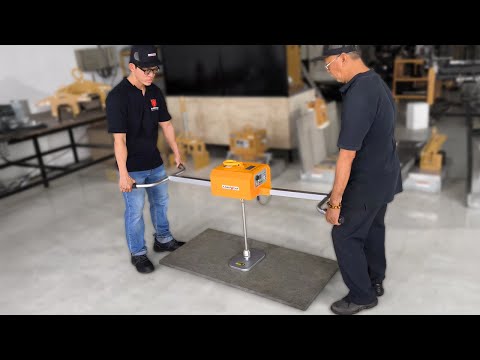

Paving Stone Lifter APSL - Product Demo Video
Watch our comprehensive product demonstration video showing how to use Paving Stone Lifter APSL. Learn about key features, benefits, and setup instructions.
Watch full tutorial on YouTube
