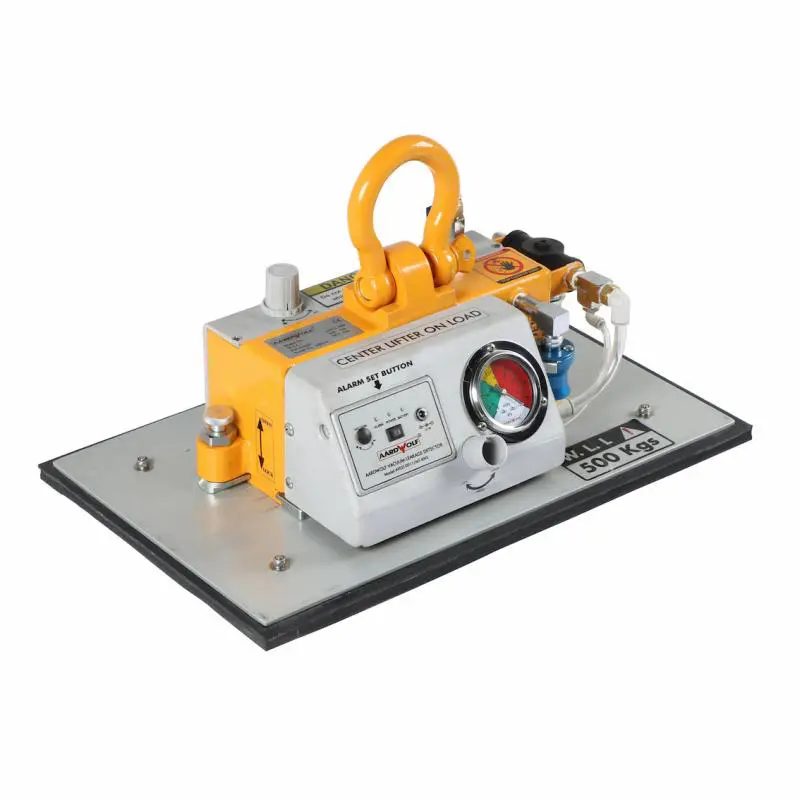

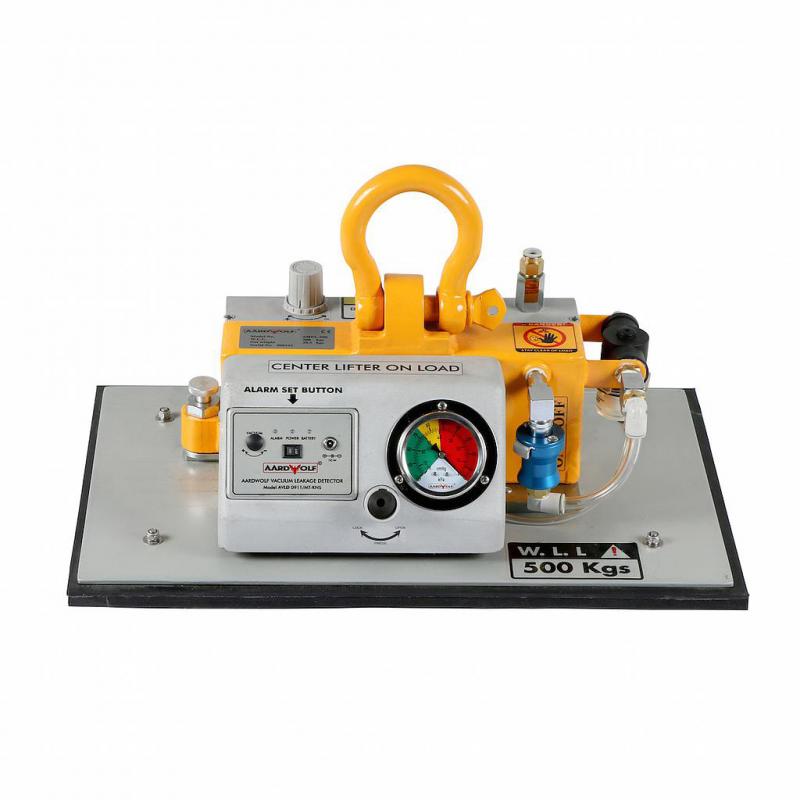

Vacuum Lifter Handy AHVL500 - AHVL500
General
The Vacuum Lifter Handy is powered by a venturi vacuum generator, which requires a compressed air source but no electricity. The vacuum generator has no moving parts, so no lubrication is required. This lifter consists of four (4) pads, which can be replaced with different pads to fit the sizes of materials.
Features
- Adjustable vacuum pads.
- Attach/release materials with an ON/OFF slide valve.
- A small 9V rechargeable battery independently powers the acoustic alarm system.
- Use the vacuum gauge to warn of low vacuum visually.
- Suitable for handling stone, concrete, and foam pads
Specifications
Metric | |
| Working load limit | Pad sizes/ Kg 500x125 mm: 126 kg 500x150 mm: 164 kg 420x220 mm: 220 kg 500x300 mm: 380 kg |
| Net weight | 45 kg |
| Gross weight | 50 kg |
| Packaging dimensions | L.570xW.350xH.280 mm |
- Battery information for the alarm system
| Power supply | 12V Lithium battery |
| Battery capacity | 2000 mAh x 1 |
| Adapter | 12.6V-2A |
| Standby time | 120 hours |
| Charging cycle | 1000 times |
| Charging time | 2.5 hours |
| Non-stop working time | 7 hours |
| 6-month warranty | - |
- Compressed air requirement
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
