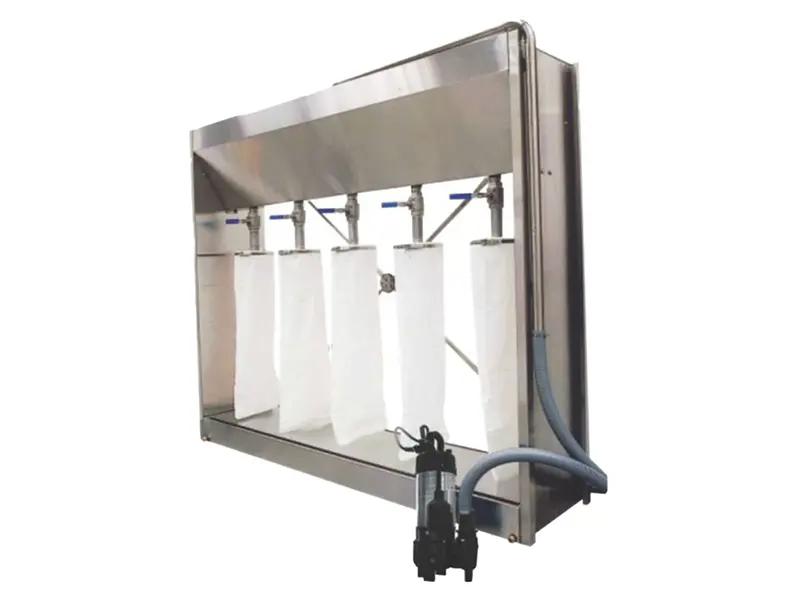

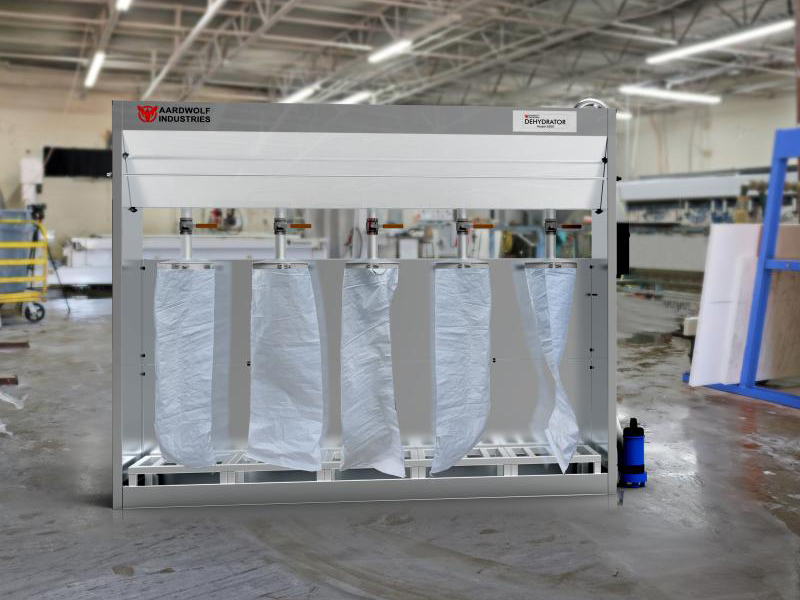

Sludge Dehydrator Filter ASDF1 – Description
General
The Sludge Dehydrator Filter is a robust and efficient solution for handling abrasive mud generated during the machining and finishing of marble, granite and other stones. This system offers a streamlined and cost-effective approach to separating and dewatering sludges and slurries. Built from high-quality stainless steel, the Sludge Dehydrator Filter is designed to ensure durability and minimal maintenance, providing businesses with a reliable and low-maintenance option for handling waste from stone processing.
Features
Fast Dehydration: Efficiently collects and traps abrasive mud from stone processing.
Cost-Effective: One-step solution for separating and dewatering sludges.
Durable: Stainless steel construction ensures long-lasting performance.
Low Maintenance: No moving parts for minimal upkeep.
Easy Operation: Simple design with four key components for hassle-free use.
Package includes
4 plastic curtains
2 stainless steel curtain rods
1 industrial water hose
3 industrial hose clamps
15 polypropylene filtration bags
1 pit cleaning tool / air stick
Specifications
Metric | Imperial | |

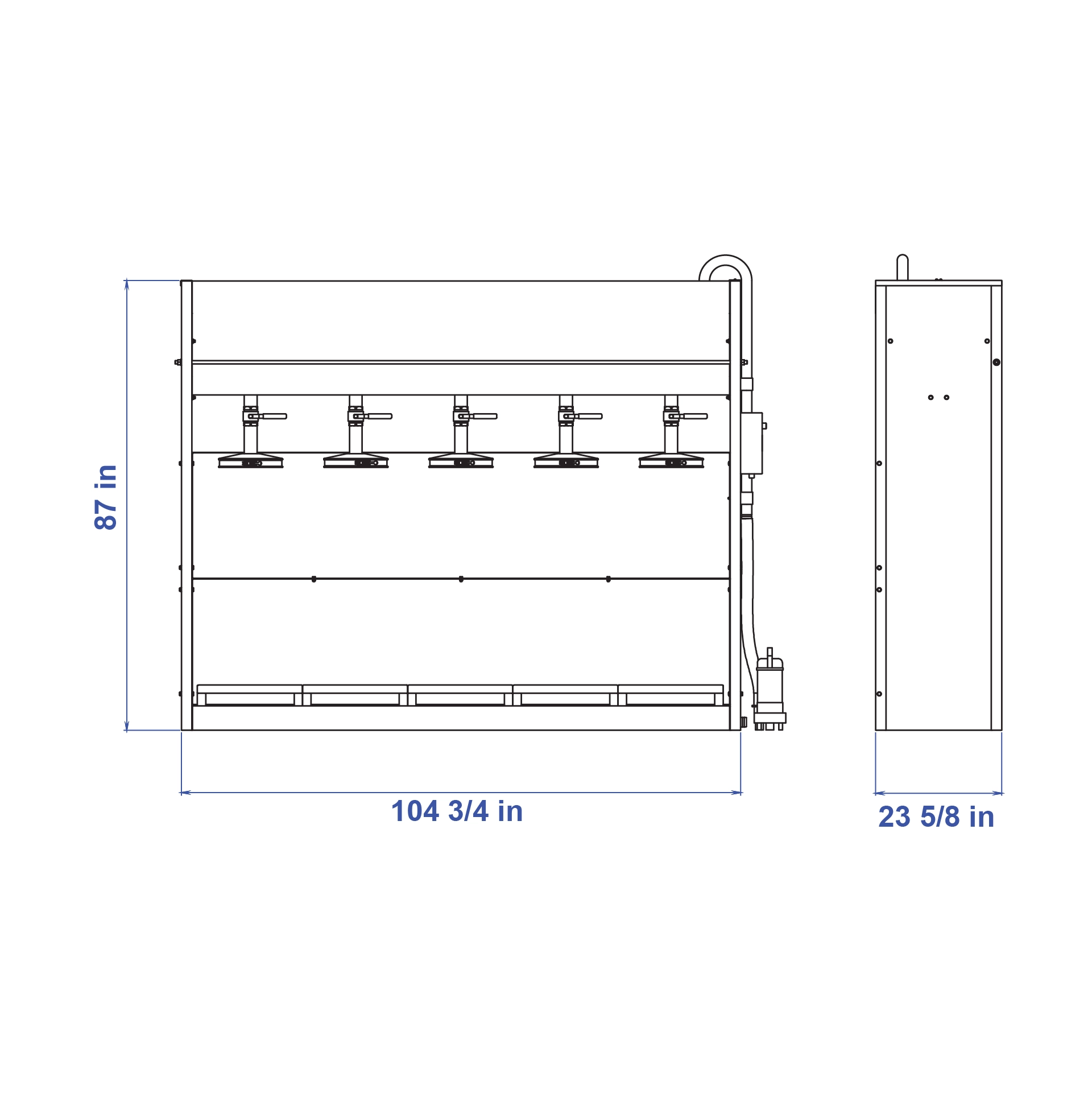

| Dimensions | 227 x 222 x 60 cm | 89 3/8" x 87 3/8" x 23 5/8" |
| Weight | 280 kg | 617 lb |
| Power requirements (USA) | 110v 50Hz (USA) | 220v 50Hz (Aus) |
| Weekly output capacity of dry mud | 22 ft³ | - |
| Mud holding tank capacity | 550 liters | 145 gallons |
| Sump pump | 6E-CIA-SFS 189 lpm / or equal | - |
| Float switch | Mechanical | - |
| Valves | 2 inches BSP brass nickel plated | - |
