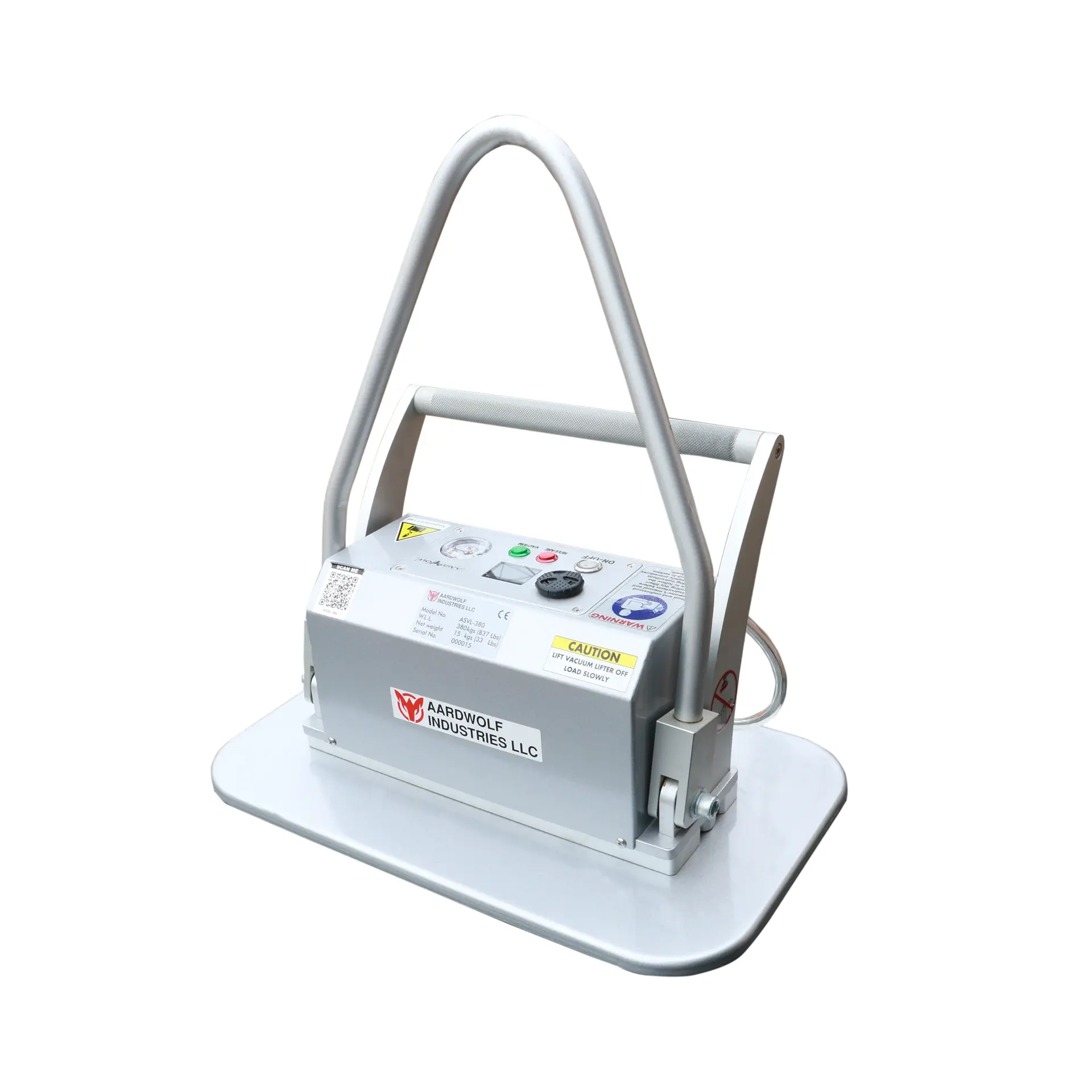

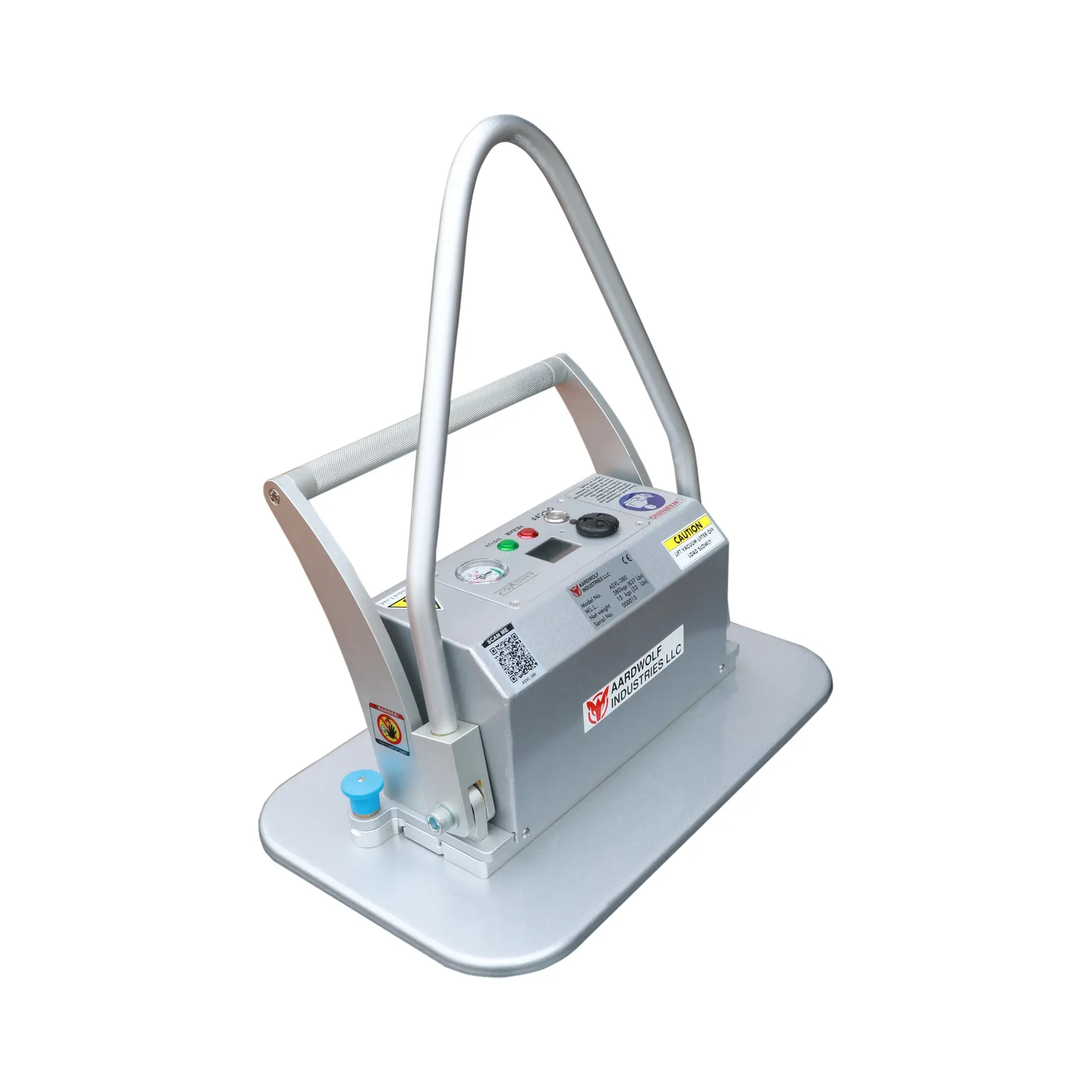

Swiftlift ASVL380 – Description

General

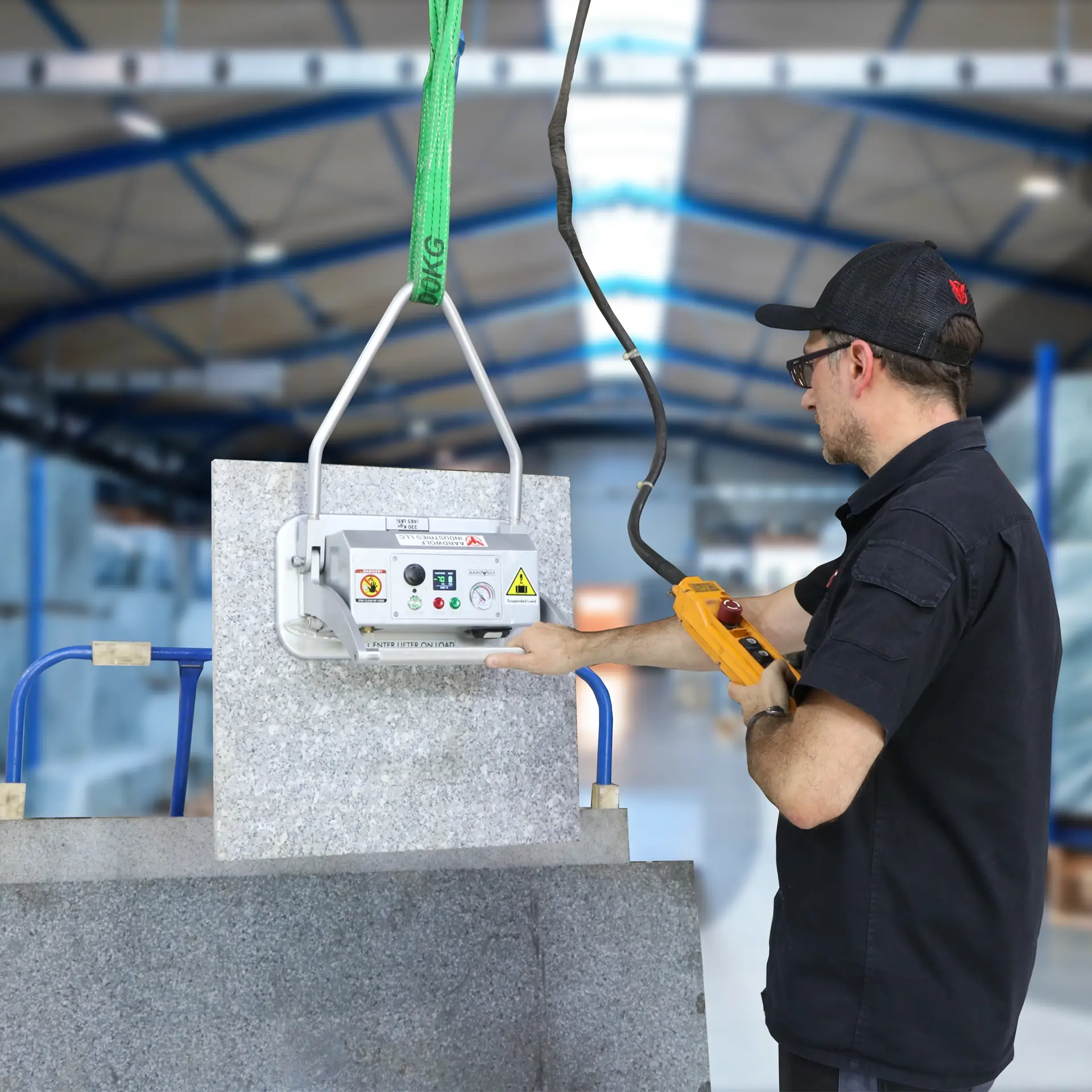

The Swiftlift is a compact vacuum lifter specifically designed for unloading cut workpieces from bridge saw tables. The operator is able to pick up workpieces from a horizontal position and easily change the load to a vertical position and place the workpiece onto a transport frame.

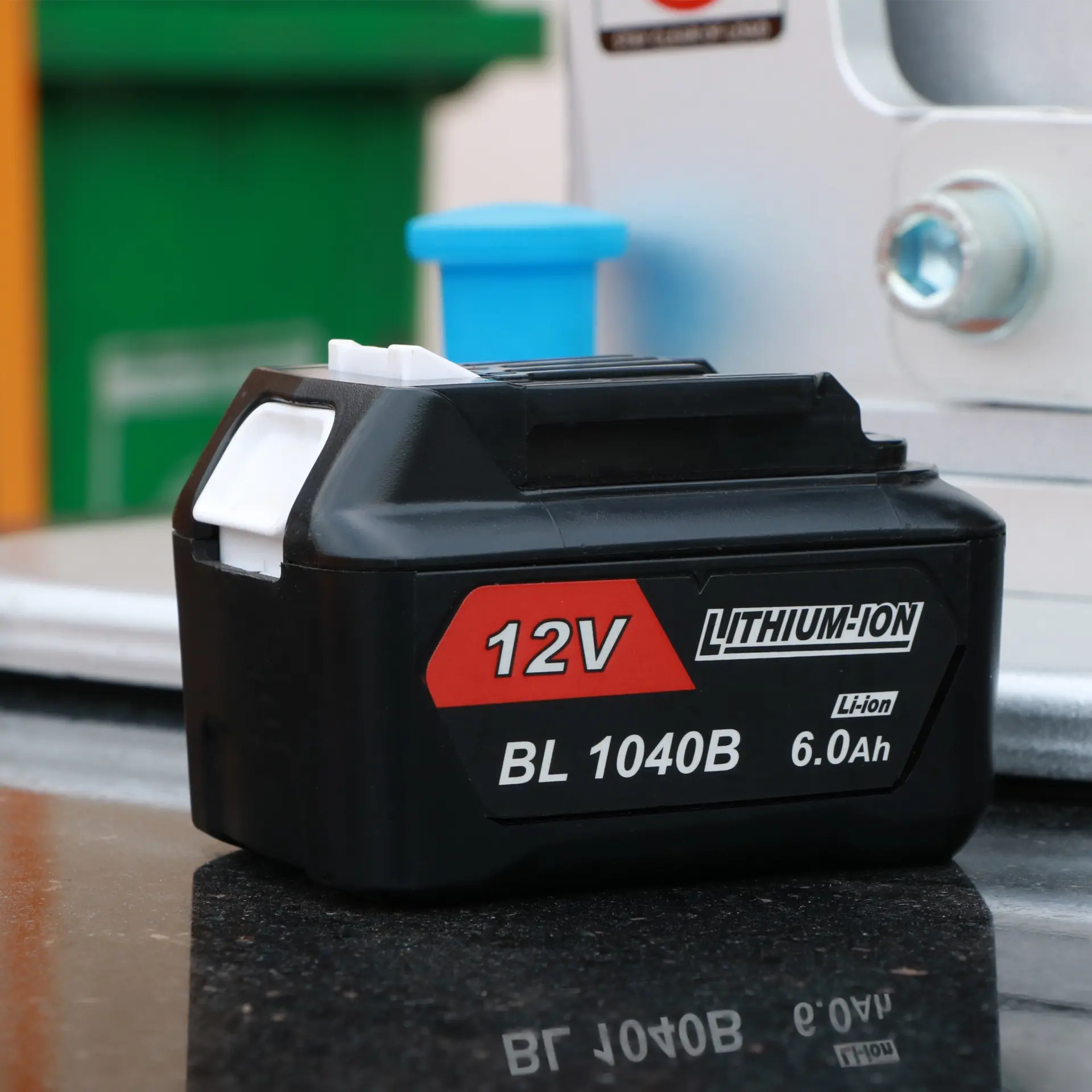

Powered by a clip-in 12V battery with energy-saving system allows you to work without recharging throughout the day. Clip-in battery can be replaced in a matter of seconds.

Features

Powered by a 12V clip-in battery.
Vacuum generated by high performance vacuum pump.
Features both audio and visual alarm.
Foam vacuum gasket suit smooth, flamed and bush-hammered surfaces.
Working load limit: Max 380kg (depends on vacuum pad dimensions).

Note:
Sold with 2 batteries, 1 battery charger and 2 large vacuum pads.

Specifications

	Metric	Imperial
Pad sizes/ W.L.L	500 x 300 mm / 380 kg	19 3/4" x 11 3/4" / 838 lbs
420 x 220 mm / 220 kg	16 1/2" x 8 5/8" / 485 lbs
Net weight	15 kg	26.4 lbs
Gross weight	30 kg	39.7 lbs
Packaging dimensions	L.585 x W.385 x H.600 mm	23" x 15 1/8" x 23 5/8"
