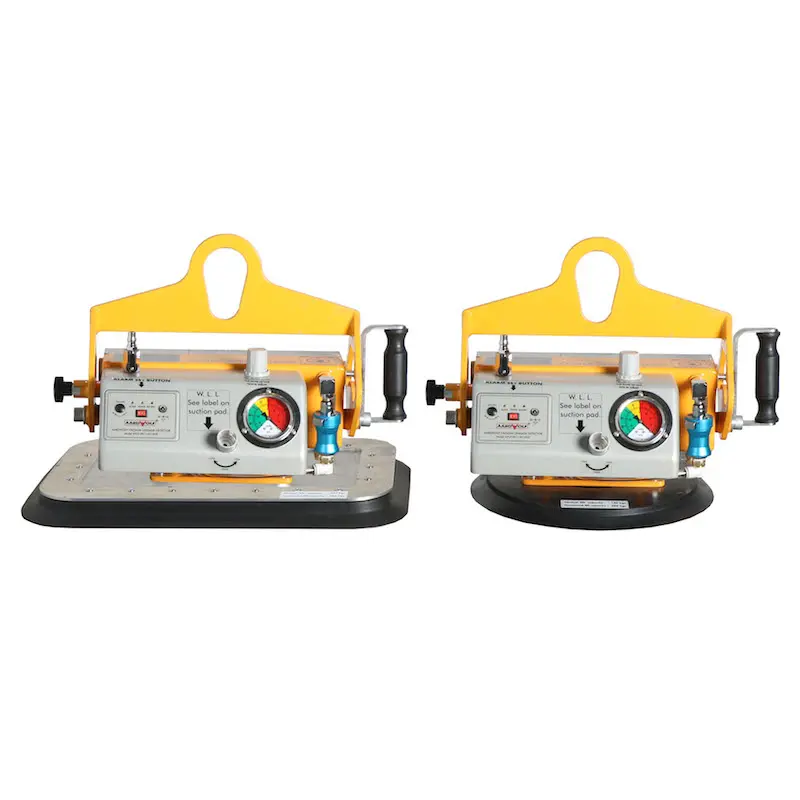

Hand Pump Vacuum Lifter AVLHP240/480 - AVLHP240/480
General
The AVLHP240/480 is powered by a hand pump or venturi pump designed to be used in the factory or on the building site. It is especially suitable for the horizontal transportation of non-porous sheet materials such as steel plate, glass, aluminium plate, and polished marble or granite.
Features
- Dust and fire-resistant.
- Attach/release materials with an ON/OFF slide valve.
- Acoustic/visual alarm system.
- Replaceable suction pads.
Specifications
Imperial | |
| Pad sizes (foam pad): 500x300mm (20.5"x12.6") | 419 lb 838 lb |
| Net weight | 42 lb |
| Gross weight | 61 lb |
| Packaging dimensions | 21.6"x15"x18.5" |
- Battery information for the alarm system
| Power supply | 3.7V Lipo battery |
| Battery capacity | 2000 mAh x 1 |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Adapter | DC 5V-1A |
| Non-stop working time | 7 hours |
| 6-month warranty | - |
- Compressed air requirement
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
