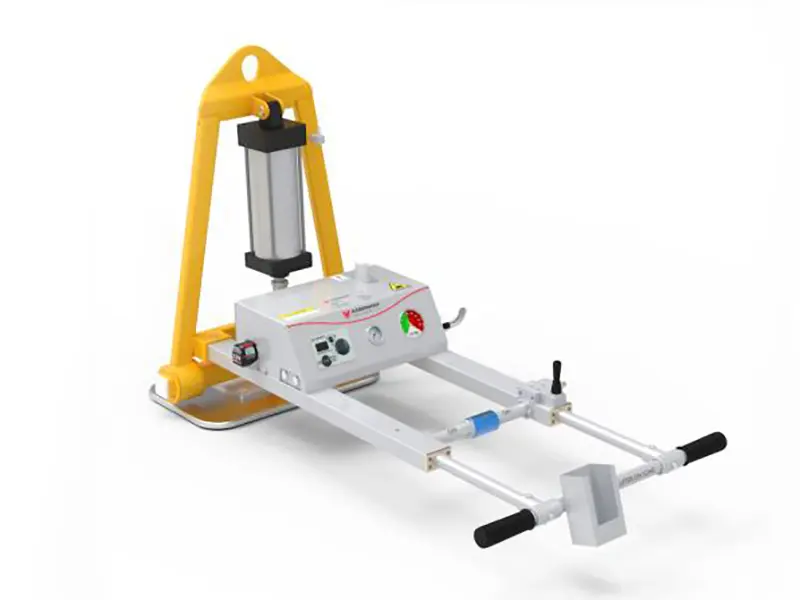

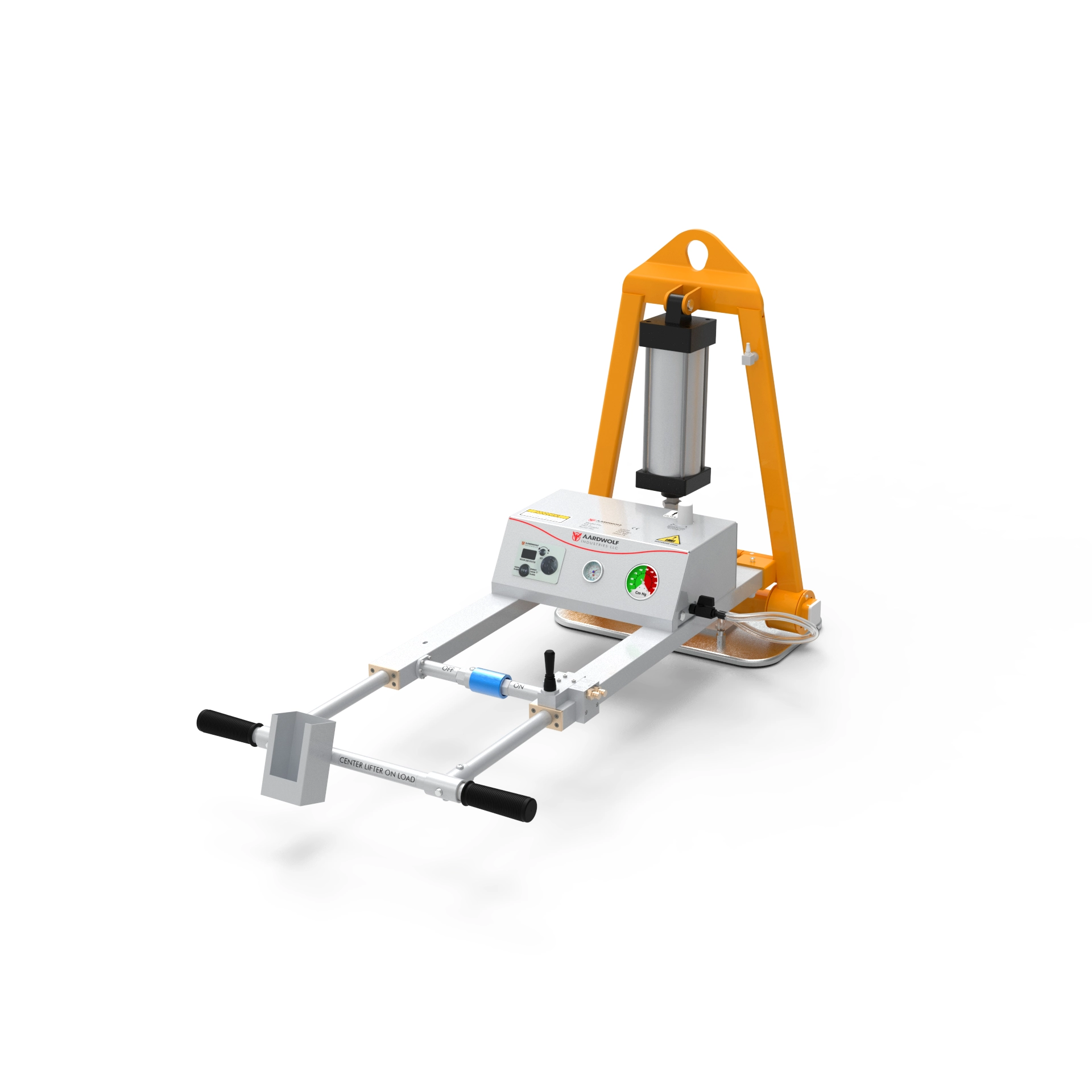

AVLP Pro Vacuum Lifters - AVLP1-250P
General
The Vacuum Lifter Pro is a reliable tool for lifting and tilting stone slabs such as granite, marble, and other heavy materials. Powered by compressed air, it allows smooth 0°–90° tilting, making slab handling safer and more efficient.
Features
Pneumatic Tilting – Smooth, precise 0°–90° vertical/horizontal tilting.
Vacuum Tank – Maintains suction during sudden power loss for added safety.
Alarm System – Visual and audio alerts when vacuum pressure is low, powered by a rechargeable 12V battery.
Slide Valve Control – Simple ON/OFF operation for quick attachment and release.
Dual Operation Modes –
Audio Alarm Mode: Buzzer alerts when vacuum drops below 64 kPa.
Energy Saver Mode: Automatically starts/stops the pump to maintain pressure and save air.
Adjustable Handles – Extend from 76.2 mm (3") to 106.68 mm (4.2") for better ergonomics and comfort.
Robust Construction – Durable design suitable for heavy-duty use.
Specifications
| AVLP1-250P | Imperial |
|---|---|
| Number of pads | 1 |
| Pad size | 19 5/8 × 11 3/4 in |
| Working load limit – Vertical | 275 lb |
| Working load limit – Horizontal | 550 lb |
| Net weight | 105 lb |
| Gross weight | 170 lb |
| Packaging dimensions | 42 1/8 × 15 3/8 × 38 5/8 in |
| BATTERY INFORMATION – ALARM SYSTEM | Details |
|---|---|
| Battery code | GBA 12V 2.0Ah Bosch |
| Battery type | Lithium-ION |
| Voltage | 12V |
| Capacity | 4.0Ah |
| Quantity | 1 |
| Continuous operation time (pressure saving mode) | 2 hours |
| Working time (pressure saving mode) | 6 hours |
| Continuous operation time (audio alarm only) | 120 hours |
| Working time (audio alarm only) | 360 hours |
| BATTERY CHARGER | Details |
|---|---|
| Charger code | GAL 12V-40 Bosch |
| Input supply voltage | 110–240 VAC |
| Output voltage | 5V |
| Output current | 2.0Ah |
| Quantity | 1 |
| Full charge time | 0.5 hour |
| Weight | 1 lb |
| COMPRESSED AIR REQUIREMENT | Details |
|---|---|
| Air consumption | 6.4 CFM |
| Supply air pressure | 72 psi |
