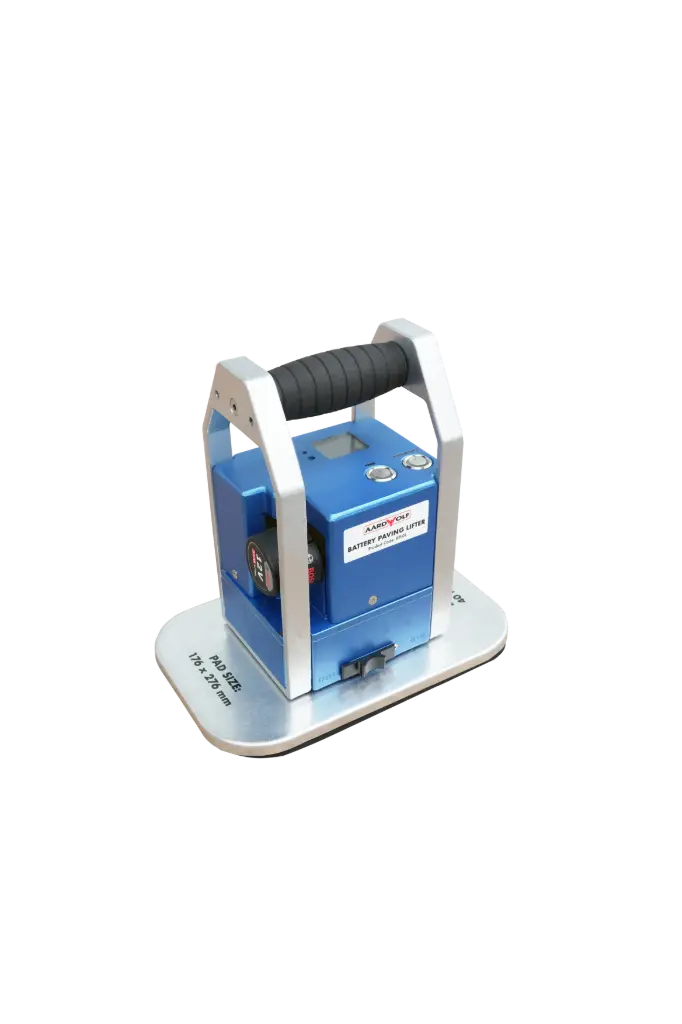

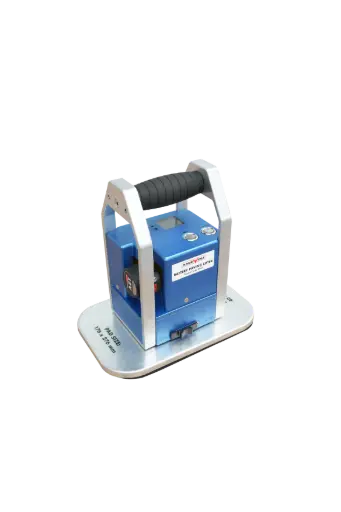

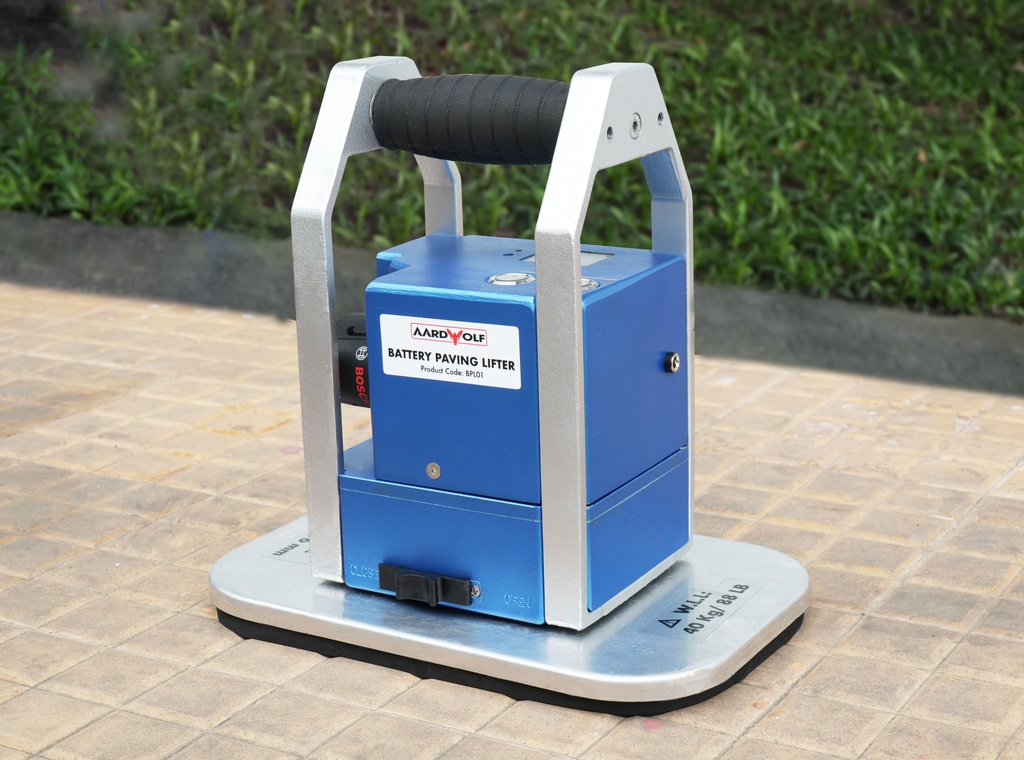

BATTERY PAVING LIFTER - BPL01
General

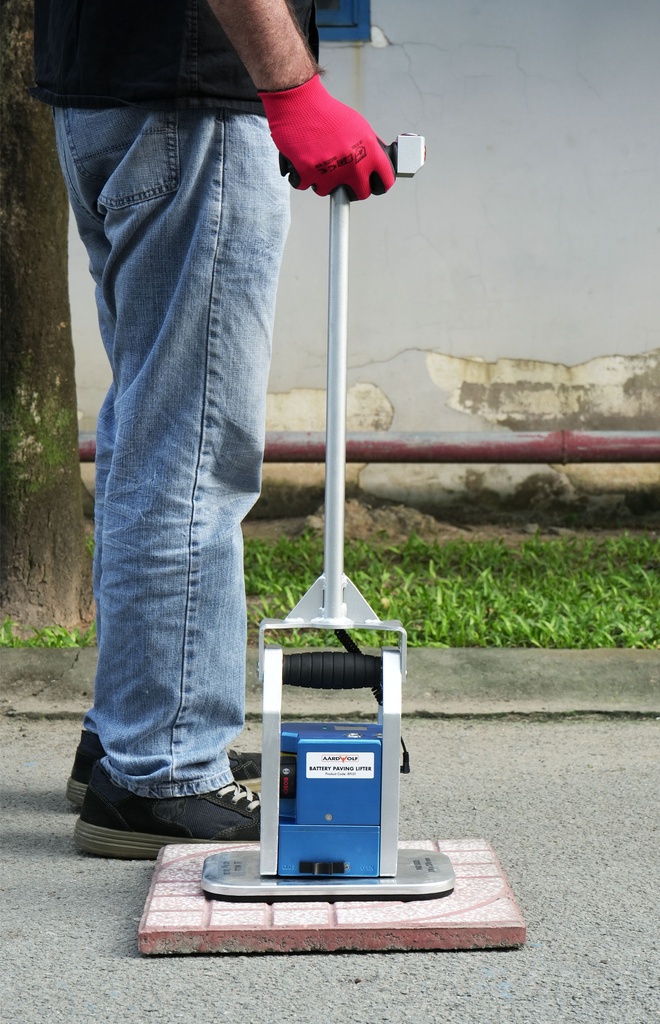

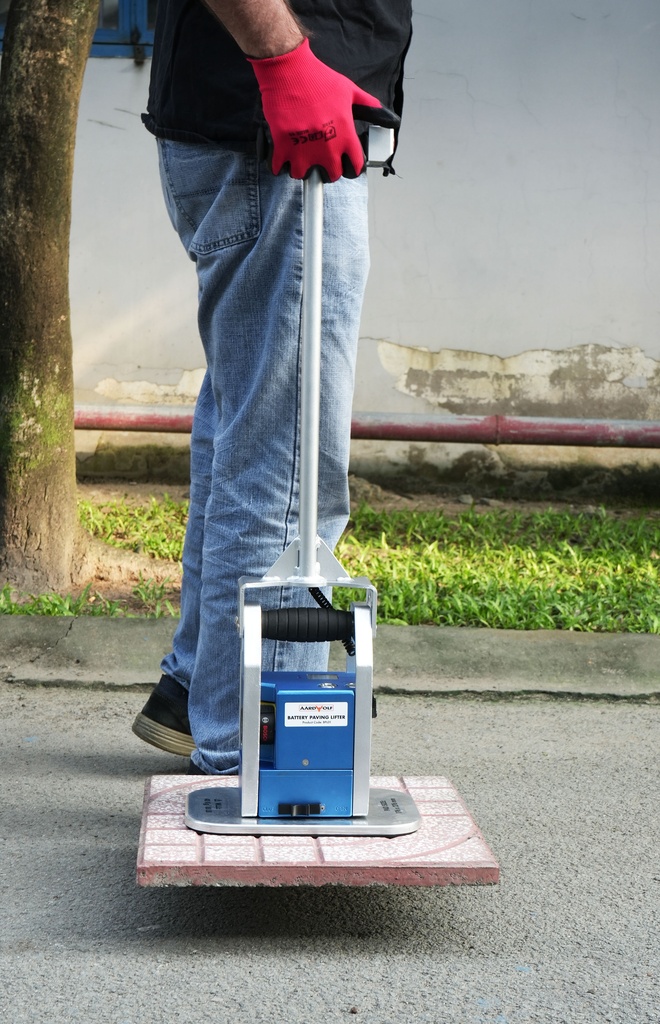

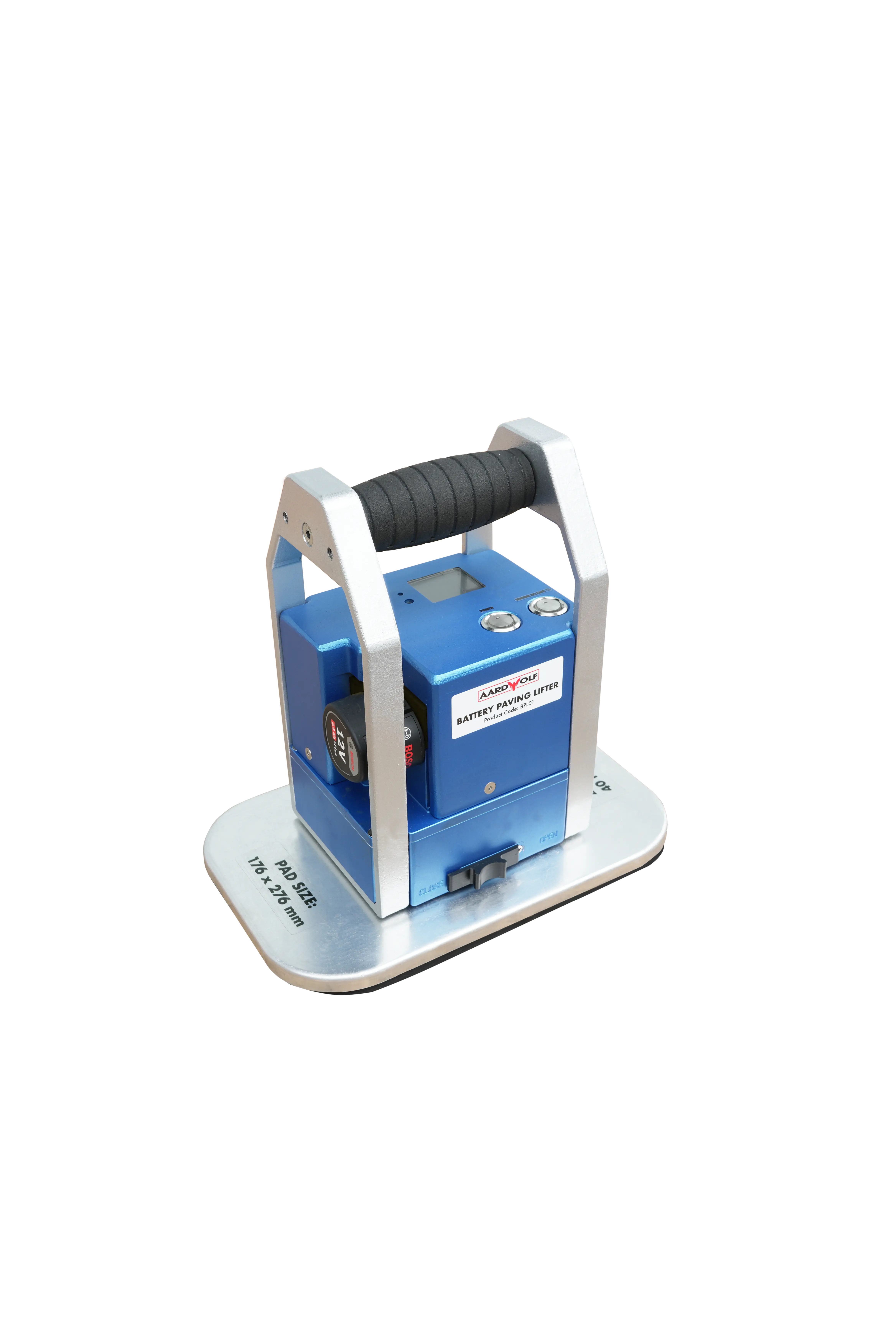

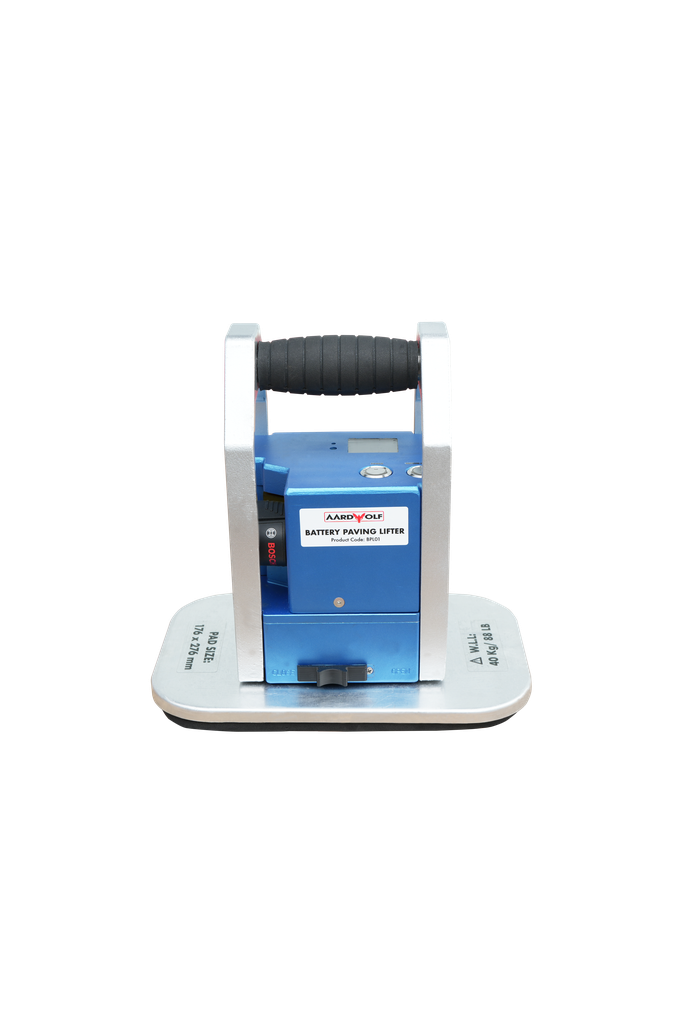

The Battery Paving Lifter BPL01 is a compact vacuum lifter designed for the installation of paving blocks, tiles, and small concrete slabs. Its lightweight aluminum frame supports comfortable handling in both low working positions and upright operation.
Equipped with release buttons on both the body and the upper handle, the unit offers convenient control in different working postures. The quick-fit pad system allows easy pad changes as needed, while the 12V Li-ion battery makes the BPL01 suitable for on-site and mobile applications.
Key Features

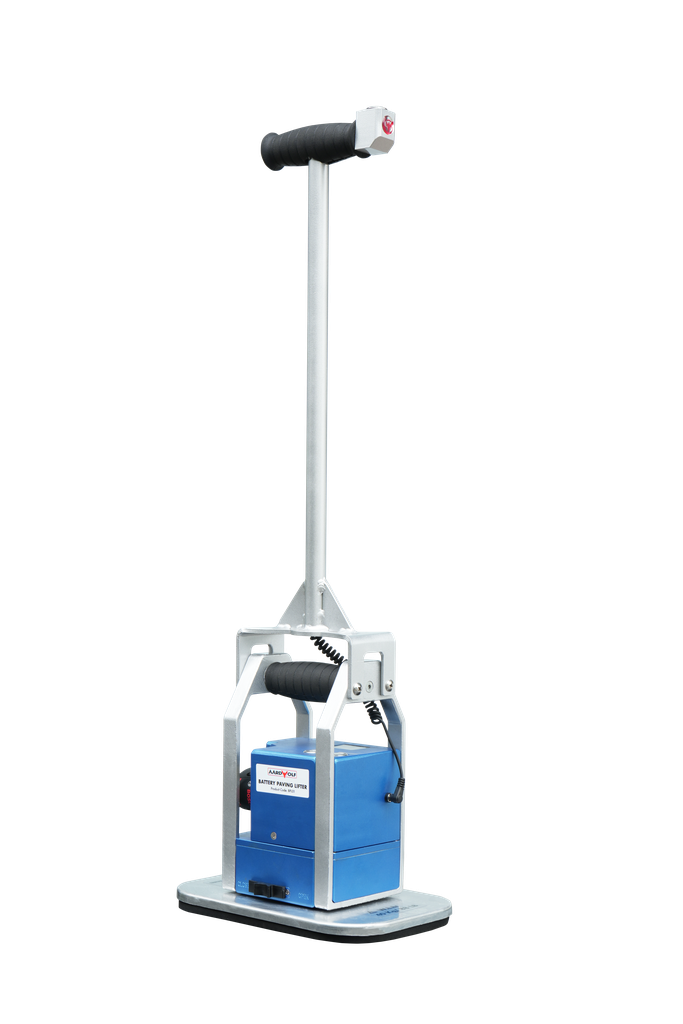

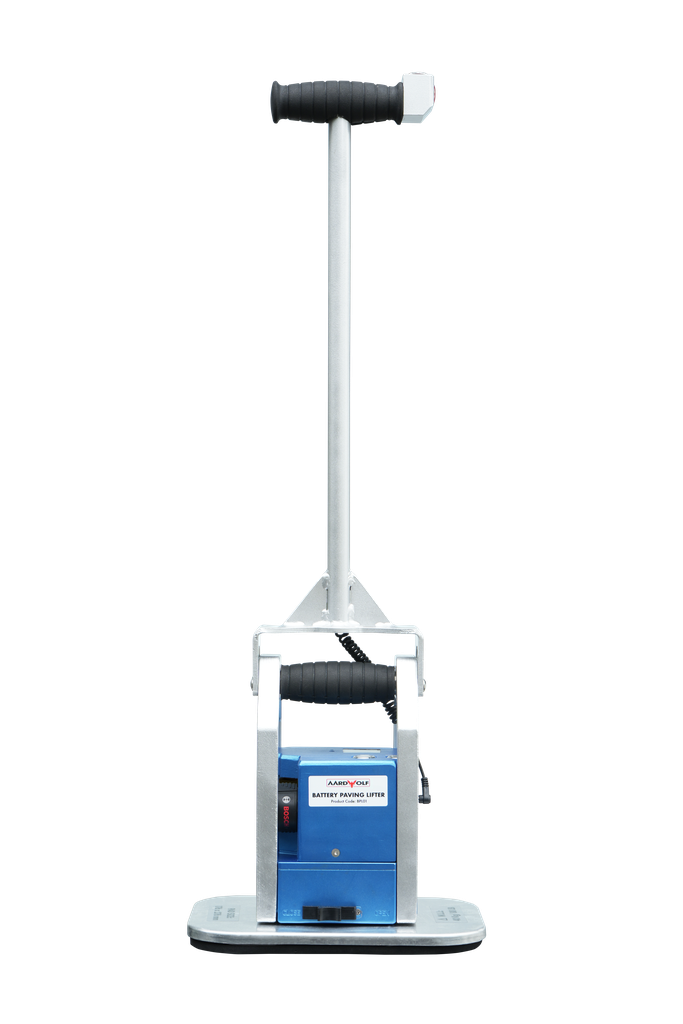

• Dual Release & Handle System: Body-mounted release for ground-level handling and handle-mounted release for upright operation.
• Lightweight Aluminum Frame: Strong, corrosion-resistant, and easy to maneuver.

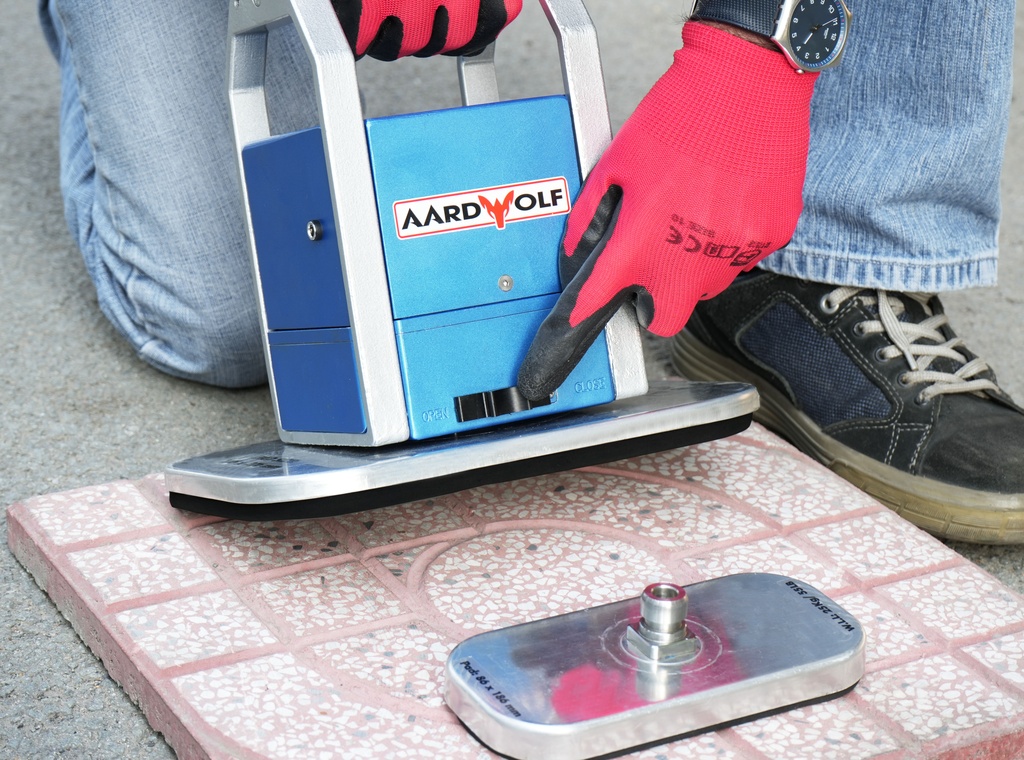

• Quick-Fit Pads: Tool-free sliding mechanism for fast pad changes.
• Interchangeable Pads: Supports two pad sizes for different lifting capacities and material dimensions.
• 12V Li-ion Battery: Compact, easy to replace, ideal for mobile job sites.
• Easy Maintenance: Simple layout designed for convenient cleaning and servicing.
Specifications
|
Item |
Imperial |
|
Battery |
|
|
Working Load Limit |
55.1 lbs (small pad) 88.2 lbs (large pad) |
|
Pad Size – Small |
3 3/8 × 7 3/8 in |
|
Pad Size – Large |
6 7/8 x 10 7/8 in |
