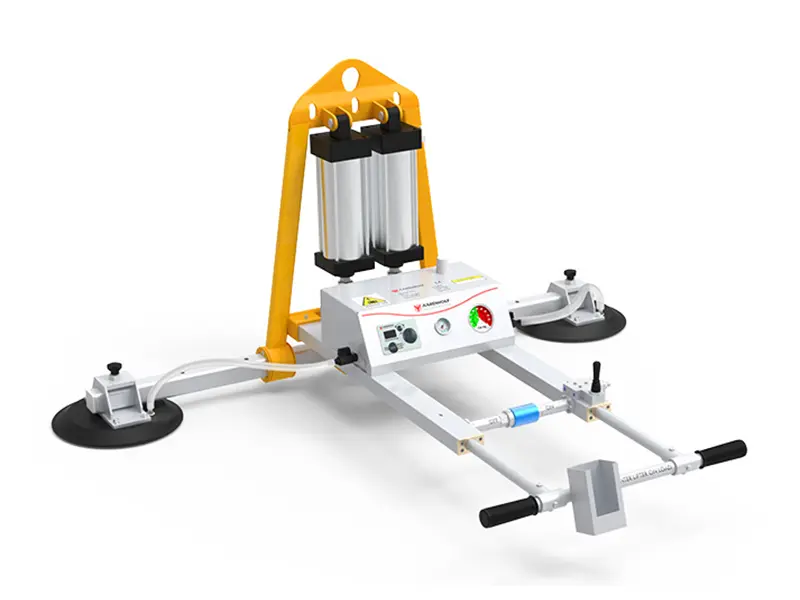

Elevadores de vidrio por vacío AVGLP - AVGLP2-200

General

The Aardwolf AVGLP Vacuum Glass Lifters are pneumatic-powered lifting solutions designed for handling large glass and porcelain panels in construction, manufacturing, and installation environments. Built to work with both smooth and lightly textured surfaces, these lifters allow precise and secure vertical-horizontal tilting up to 90°, making them ideal for positioning panels during fabrication or installation.

The AVGLP range offers multiple models with varying pad configurations and lifting capacities—accommodating everything from smaller, compact panels to oversized sheets. Each unit features a backup vacuum tank to maintain a secure hold during unexpected power loss, while an integrated 12V battery powers the visual and audio safety alarms to enhance operator safety.

Características

Pneumatic vertical-horizontal tilting from 0° to 90° for flexible panel positioning

Manual or pneumatic rotation options, depending on model

Automatic vacuum pumping to maintain suction in case of vacuum loss

Backup 12V battery to power visual and audio safety alarms

Quick ON/OFF slide valve for fast attachment and release of materials

Multiple suction pad configurations to accommodate different panel sizes and weights

Heavy-duty steel construction for durability in industrial use

Suitable for glass, porcelain, and other smooth or lightly textured sheet materials

Presupuesto

AVGLP2-200	Imperial
Número de almohadillas	-
Diámetro de la almohadilla	11 3/4"
Límite de carga de trabajo	441 lbs
Peso neto	141 lbs
Dimensiones del embalaje	58 1/4" 16 7/8" 37 3/4"

Información de la batería del sistema de alarma

Fuente de alimentación	Batería Lipo de 3.7V
Capacidad de la batería	2000 mAh x 1
Tiempo en espera	720 horas
Ciclo de carga	1000 veces
Tiempo de carga	2 horas
Tiempo de funcionamiento continuo	7 horas

Requisitos de aire comprimido

Consumo de aire	180 litros/minuto
Presión de aire de suministro	5 bares (72 psi)

Elevadores de vidrio por vacío AVGLP

Mira nuestro video de demostración de producto completo que muestra cómo usar Elevadores de vidrio por vacío AVGLP. Aprende sobre las características clave, beneficios e instrucciones de configuración.

Mira el tutorial completo en YouTube
