Plumas para montacargas de perfil bajo

Home EQUIPO DE CARRETILLA ELEVADORA Plumas para montacargas de perfil bajo

Plumas para montacargas de perfil bajo

Grip Range Options

Extension Options
- Low Profile Forklift Boom FB2LP-3600 (3603mm / 141.9")
- Low Profile Forklift Boom FB3LP-5420 (5410mm / 213")

Quantity

Extension Options
- Low Profile Forklift Boom FB2LP-3600 (3603mm / 141.9")
- Low Profile Forklift Boom FB3LP-5420 (5410mm / 213")

Add to cart

Descripción

General

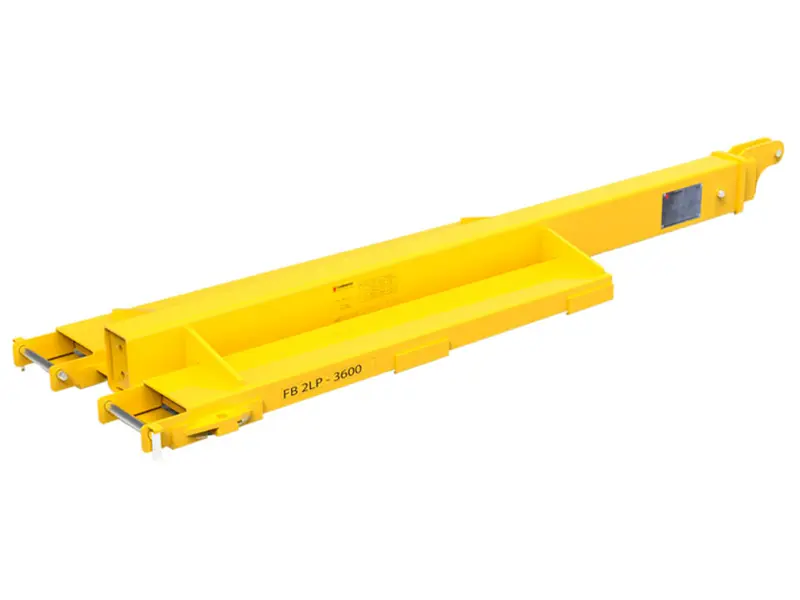

The Low Profile Forklift Booms have a low profile design specifically intended for unloading marble and granite sheets from closed containers where height is a critical factor. The Low Profile Forklift Booms have a telescoping two-section rectangular tube steel boom built to comply with current safety guidelines and manufactured from heavy gauge Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability and safety.

Características

La extensión de la pluma está diseñada para que no se pueda extraer completamente.
La pluma está firmemente asegurada a las hojas de la horquilla mediante dos pernos ubicados en la parte posterior de cada bolsillo de la horquilla y pasadores de sujeción.
Acabado duradero con pintura en polvo

Nota: Las capacidades de elevación de la pluma dependen completamente de la capacidad de la carretilla elevadora.

Presupuesto

Pluma de carretilla elevadora de perfil bajo FB2LP-3600

	Métrico	Imperial
Telescopio manual	2121-3603 mm	83 1/2" - 141 7/8"
Incremento	494 mm	19 1/2"
Colóquelo en un tenedor diseñado con bolsillos para tenedores	165 x 65 mm	6 1/2" x 2 1/2"
Bolsillos de horquilla de centro a centro	377 mm	14 7/8"
Límite de carga de trabajo	Retraído: 2400 kg Extendido: 600 kg	5291 libras 1323 libras
Peso neto	134 kg	295 libras
Peso bruto	144 kg	140 kg
Dimensiones del embalaje	L.2280 x An.640 x Al.370 mm	L.89 3/4" x An.25 1/4" x L.14 5/8"

Pluma de perfil bajo para montacargas FB3LP-5420

	Métrico	Imperial
Telescopio manual	2120-5410 mm	83 1/2" - 213"
Incremento	800 mm	31 1/2"
Colóquelo en un tenedor diseñado con bolsillos para tenedores	165 x 65 mm	6 1/2" x 2 1/2"
Bolsillos de horquilla de centro a centro	377 mm	14 7/8"
Límite de carga de trabajo	Retraído: 2400 kg Extendido: 300 kg	5291 libras 661 libras
Peso neto	162 kg	357 libras
Peso bruto	172 kg	379 libras
Dimensiones del embalaje	L.2400 x An.640 x Al.400 mm	L.94 1/2" x An.25 1/4" x L.15 3/4"

Nota: Tres alternativas para conectar los elevadores Aardwolf a la pluma de la carretilla elevadora:

Combo Swivel, Chain, Lifting Lug. Allows flex between the boom and load. Prevents slab breakage when traversing rough terrain. It also allows the lifter to be lowered down into confined spaces, such as when lifting a short slab from a racking system.
Forged Aluminium Swivel Shackle. A compact swivel shackle that attaches directly to the forklift boom and Aardwolf lifting clamp. Gives operators maximum lift within a shipping container.
Bow Shackle 3.0T. It is useful in many applications for safe and secure attachments.
