Folding A-Frames - FAF1600
General

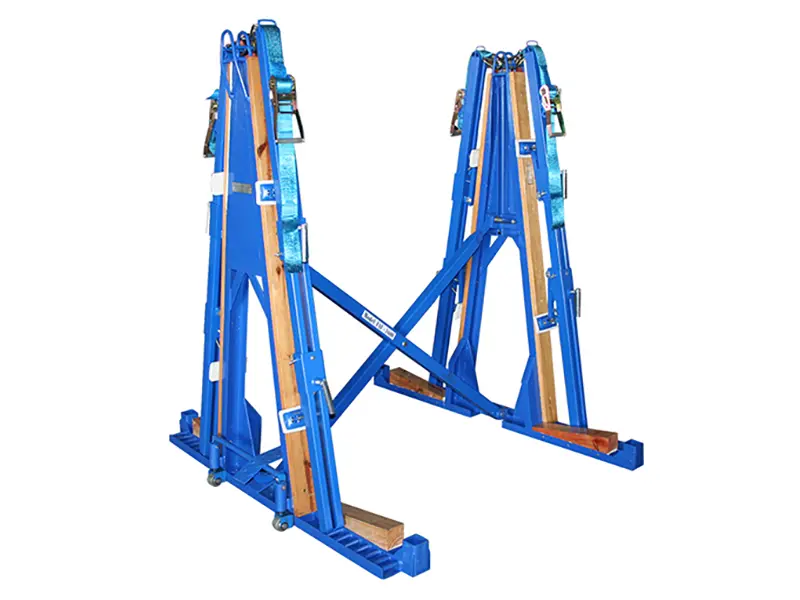

The Aardwolf Folding A-Frame is built to safely transport granite, marble, and other stone slabs. It secures material on both sides using vertical locking bars and ratchet straps.
When not in use, the frame folds down quickly by pulling two spring-loaded pins and lowering the wheels with a cam lever. It’s easy to move around the shop or load onto a truck.
Features
Bolt holes in the base of the frame for optionally securing the Folding A-Frames to the vehicle.
Granite is secured by rubber pads mounted on cleats, which are adjustable in height along the vertical locking bars.
Large hand-tightened wing nuts tighten the cleats to the vertical locking bars.
Powder-coated finish.
Read More
Read Less
Specifications
FAF1600
Imperial | |
| Width of slab storage base area on each side | 15 1/4" |
| Working load limit per side | 6614 lb |
| Total working load limit | 13228 lb |
| Frame height | 63" |
| Net weight | 492 lb |
| Gross weight | 518 lb |
| Packaging dimension | L.65" x W.19 3/4" x H.73 5/8" |
Folding A-Frames
Watch our comprehensive product demonstration video showing how to use Folding A-Frames. Learn about key features, benefits, and setup instructions.
Watch full tutorial on YouTube
