    Vacuum Block Lifters
    Vacuum Block Lifters

    Vacuum Block Lifters

    Grip Range Options

    • Weight Load Limit Options
    • Power Source
    • Material Surface
    Quantity

    Description

    General

    General

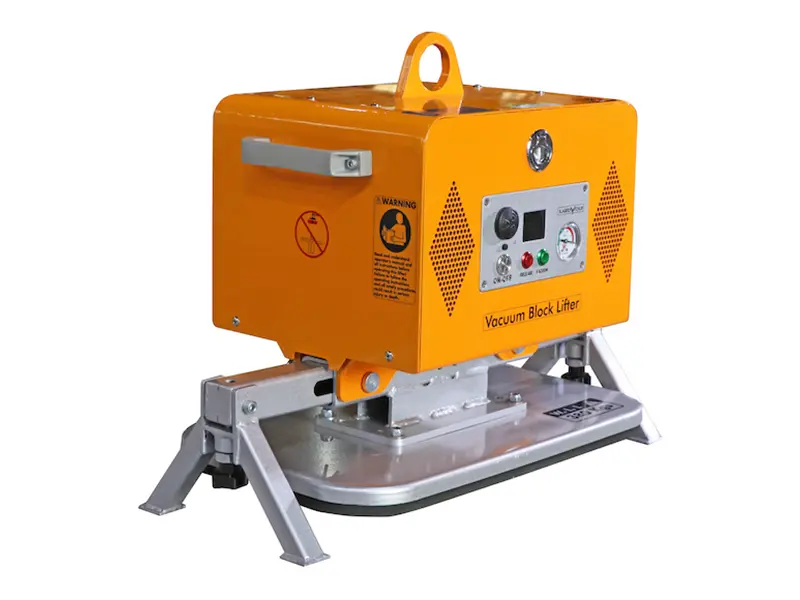

    A powerful battery-operated vacuum lifting device for laying marble and granite slabs, concrete and similar.  Robust and compact, this Vacuum Block Lifter can be suspended on all types of lifting equipment by means of load hooks, chains, cables, etc.

    Strong and compact body with built-in mount for crane hook and the ability to quickly replace the vacuum suction pads.

    Features

    • Equipped with a battery-operated vacuum pumps.
    • ON/OFF slide valve.
    • Audio/visual safety system: warning flashlight, vacuum gauge, large vacuum reserve tank.
    • The automatic vacuum pumping system.
    • Long working hours.
    • Battery charge indicator.
    • Manually operated valve for vacuum.

    Specifications

    Vacuum Block Lifter AVBL380


    Metric
    Imperial
    Working load limit500 x 125 mm: 126 kg
    420 x 220 mm: 220 kg
    500 x 150 mm: 164 kg
    500 x 300 mm: 380 kg    		19 3/4" x 4 7/8": 278 lb
    16 1/2" x 8 5/8": 485 lb
    19 3/4" x 5 7/8": 362 lb
    119 3/4" x 11 3/4": 838 lb
    Net weight39 kg86 lb
    Gross weight55 kg121 lb
    Packaging dimensionsL.585 x W.385 x H.530 mmL.23" x W.15 1/8" x H.20 7/8"


    Comes with alternate size suction pads when lifting smaller pieces.      (Custom dimension vacuum plates made on request)

    Powered by a clip-in 24V battery with energy-saving system allows you to work without recharging throughout the day.  Clip-in battery can be replaced in a matter of seconds.

    Vacuum Block Lifter AVBL1000


    Metric
    Imperial
    Pad sizes800 x 500 mm31 1/2" x 19 3/4"
    Working load limit1000 kg2204 lb
    Net weight95 kg209 lb
    Gross weight116 kg256 lb
    Packaging dimensionsL.870 x W.570 x H.635 mmL.34 1/4" x W.22 1/2" x H.25"


    Equipped with 2 battery-operated vacuum pumps.  The operator has the choice of switching on 1 pump or switching on 2 pumps, depending on the porosity of the load.
