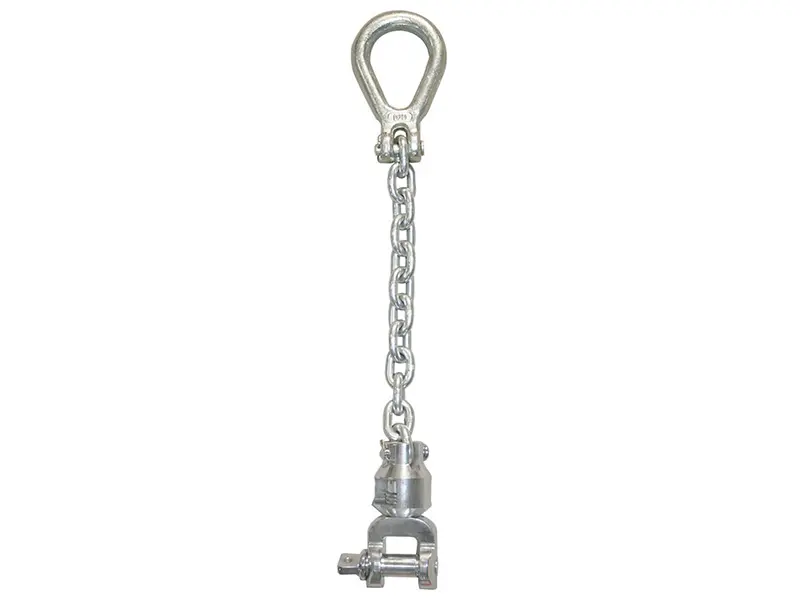

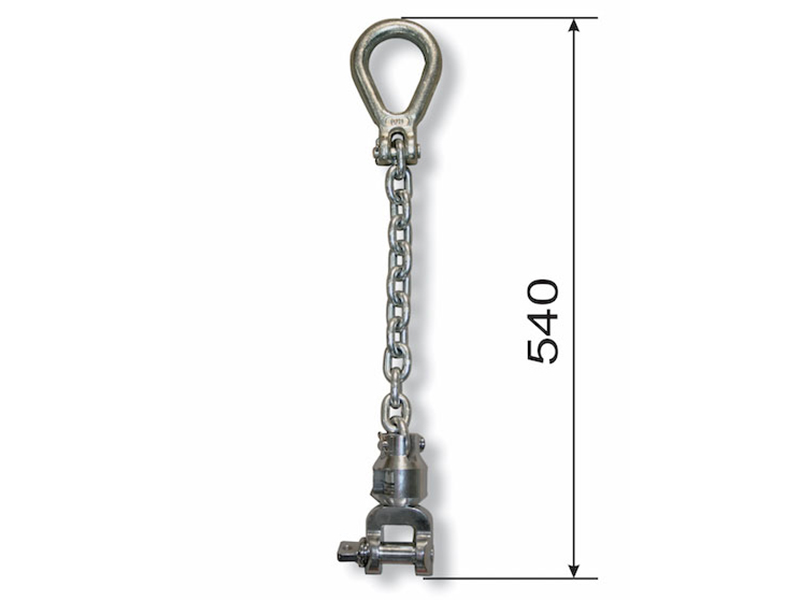

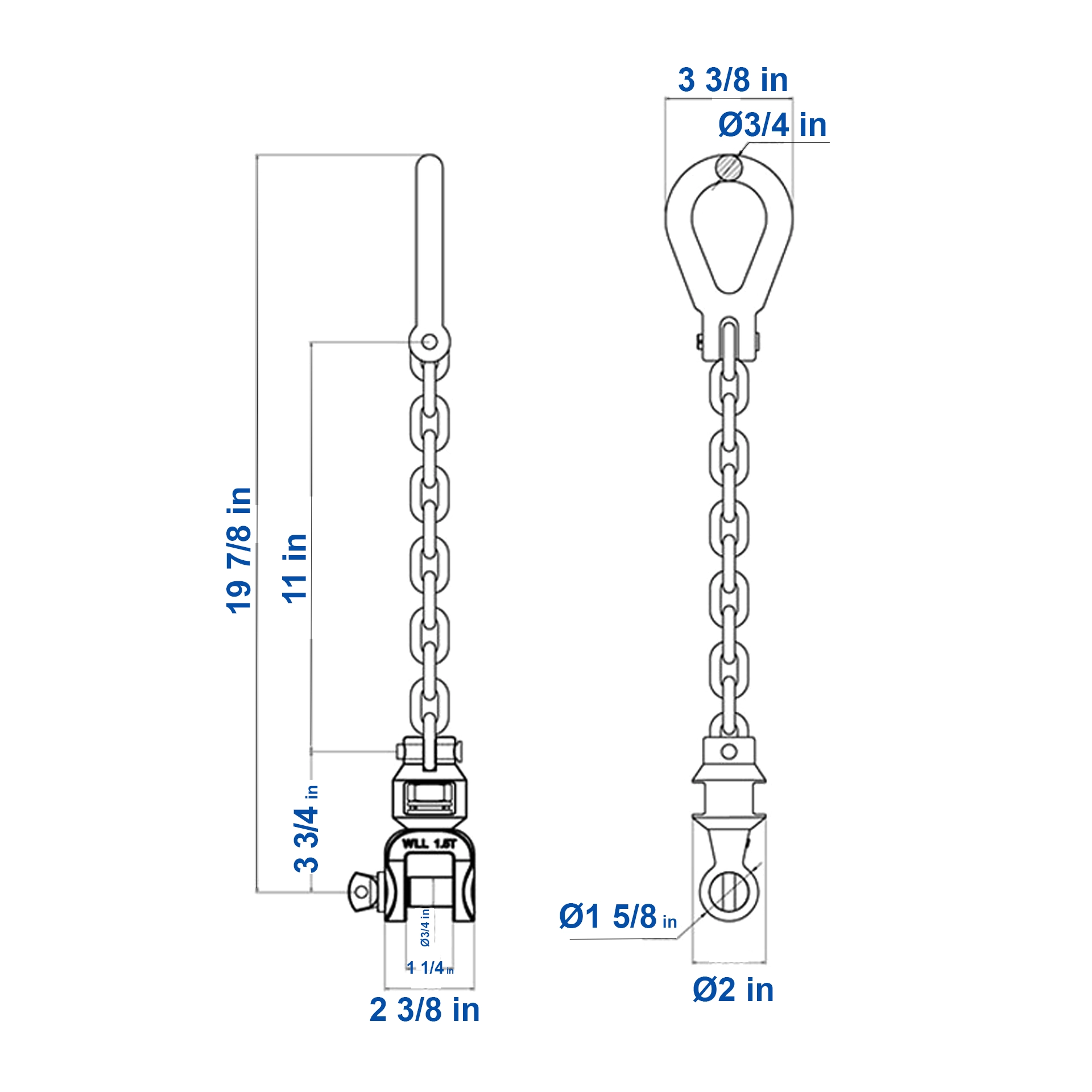

Combo Swivel-Chain-Lifting Lug 1.5T SSC1.5T

Overview

The SSC1.5T Combo Swivel Chain Lifting Lug is designed for use with Aardwolf lifting equipment to provide a secure and flexible connection between lifting clamps and machinery such as cranes, excavators, and backhoes.

Combining a lifting lug, chain assembly, and swivel shackle into one compact unit, it allows operators to safely lift, transport, and accurately position heavy materials such as stone slabs while keeping the load suspended below the equipment.

The integrated chain connection creates additional flexibility and articulation during lifting operations, making it easier to handle loads in confined or hard-to-reach job site conditions.

Why Use the SSC1.5T Combo Swivel Chain Lifting Lug?

Increased Reach and Clearance

The chain lowers the lifting clamp below the bucket teeth or hook of the backhoe, allowing operators to place materials into deep trenches or narrow spaces without forcing the boom into the excavation area.

Precise Load Positioning

The swivel connection allows the load to rotate and move more freely during lifting, helping workers position stone slabs and materials with greater precision and control.

Helps Protect the Clamp

When space between the clamp and boom is limited, accidental downward movement of the boom can crush or damage the clamp. The chain assembly helps provide additional clearance to reduce the risk of equipment damage.

Manufactured from high-grade forged aluminum, the SSC1.5T offers excellent strength, durability, and dependable performance in demanding lifting applications.

Key Features

• Swivel connection for flexible load movement
• Integrated chain system for improved handling and positioning
• High-strength forged aluminum construction
• Helps reduce slab surface damage on uneven job sites
• Designed for use with Aardwolf lifting clamps and stone handling systems

Applications

• Connecting lifting clamps to cranes and hoisting equipment
• Stone slab lifting and transportation
• Construction and material handling operations
• Workshop, warehouse, and job site applications
