Bundle Rack 3M Rubber-Topped – Descripción
General Description

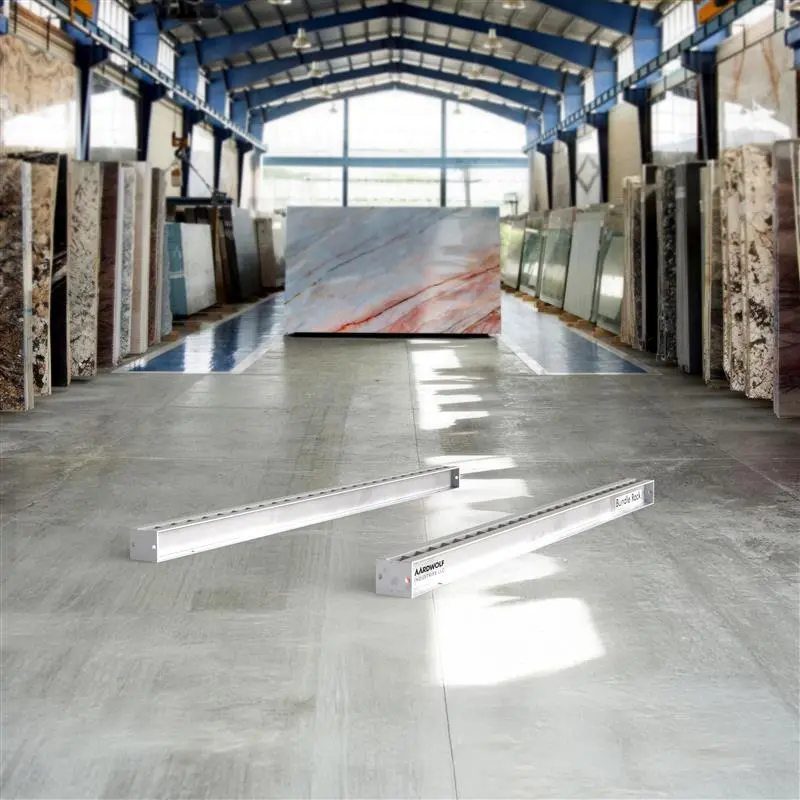

The Aardwolf Bundle Rack – 3M Rubber-Topped is built for safe, vertical storage of heavy slab bundles. This system includes a pair of 3-meter galvanized steel rails with rectangular slots designed to accommodate rectangular steel posts (sold separately). Each rail is topped with a high-grip rubber layer to help stabilize stored materials and protect them from surface damage. Engineered with high-tensile galvanized steel and a 5 mm wall thickness, the rack provides a durable and dependable solution for slab storage in industrial environments.
Features
- Rubber-Topped Surface: Improves friction and protects against chipping and slippage.
- Heavy-Duty Steel Construction: Built from galvanized steel with a yield strength of 345 MPa.

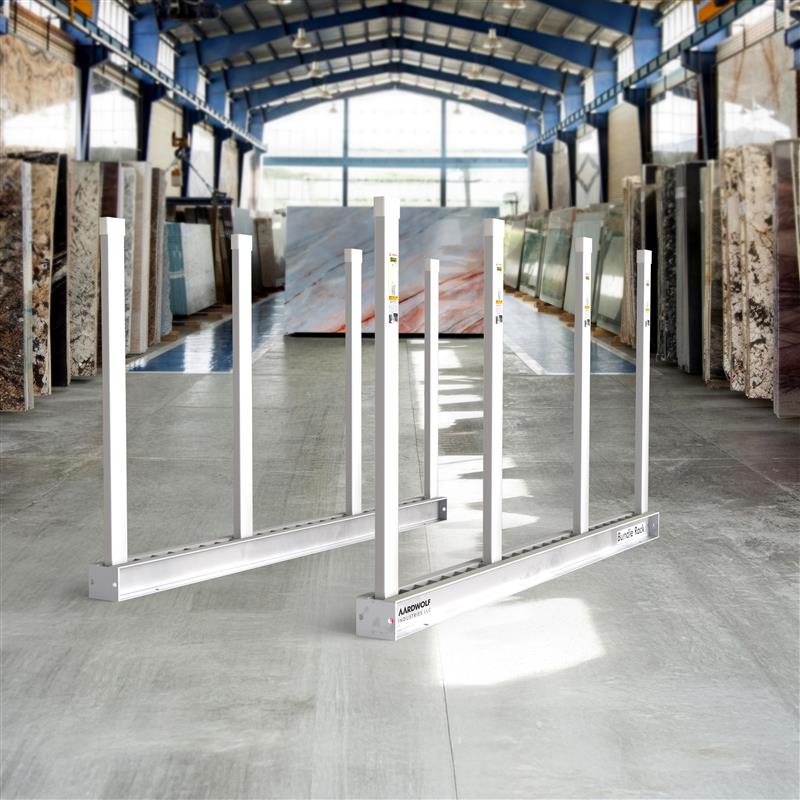

- Customizable Post Positioning: Rectangular holes allow flexible post arrangement along the rail.
- Post Height Options: Compatible with post heights of 1200, 1400, and 1600 mm.
- Optimized for 4° Lean Storage: Supports safe and efficient slab stacking at an industry-standard angle.
- Supported by the Aardwolf Slab Rack Storage Calculator to optimize post layout and slab spacing.
Slab Rack Storage Calculator
This rack is supported by the Aardwolf Slab Rack Storage Calculator — a user-friendly digital tool that helps you plan safe and efficient slab storage configurations. Determine the correct number and height of posts based on your specific slab dimensions and materials.
Presupuesto
| Cantidad | Métrica | Imperial |

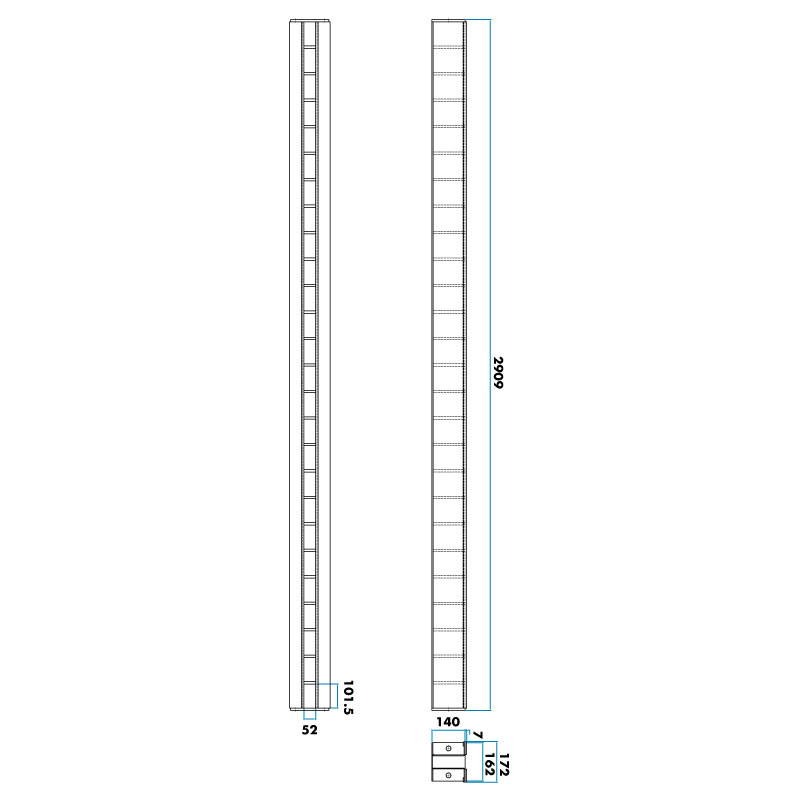

Riel de acero galvanizado | 2 | 2925x164x165 mm | 115 1/8"x6 1/2"x6 1/2" |
Altura del bastidor |
| 165 mm | 6 1/2" |
Agujero rectangular | 26 (each rail) | 101.5x52 mm | 4"x2" |
Incremento |
| 111.5 mm | 4 3/8" |
Poste de tubo rectangular |
| 100x50 mm | 4"x2" |
Espesor de la pared de los postes |
| 5 mm | 0.2" |
Tapa de goma rectangular |
| 100x50 mm | 4"x2" |
Listones de caucho por riel |
| 50x7 mm | 2"x1/4" |
Peso neto |
| 64.2 kgs/each rail | 141.5 lbs /each rail |
Peso bruto |
| 64.5 kgs/each rail | 142 lbs /each rail |
Dimensiones del embalaje |
| L.2925 W.175 Alto 150 mm | L.115 1/8" Ancho 6 7/8" Alto 5 7/8" |
