Folding A-Frames - FAF1600

General

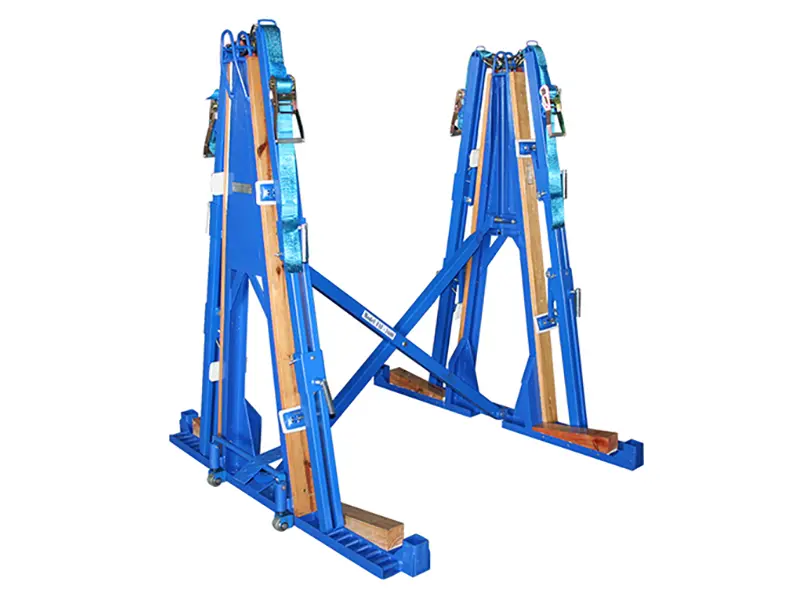

The Aardwolf Folding A-Frame is built to safely transport granite, marble, and other stone slabs. It secures material on both sides using vertical locking bars and ratchet straps.

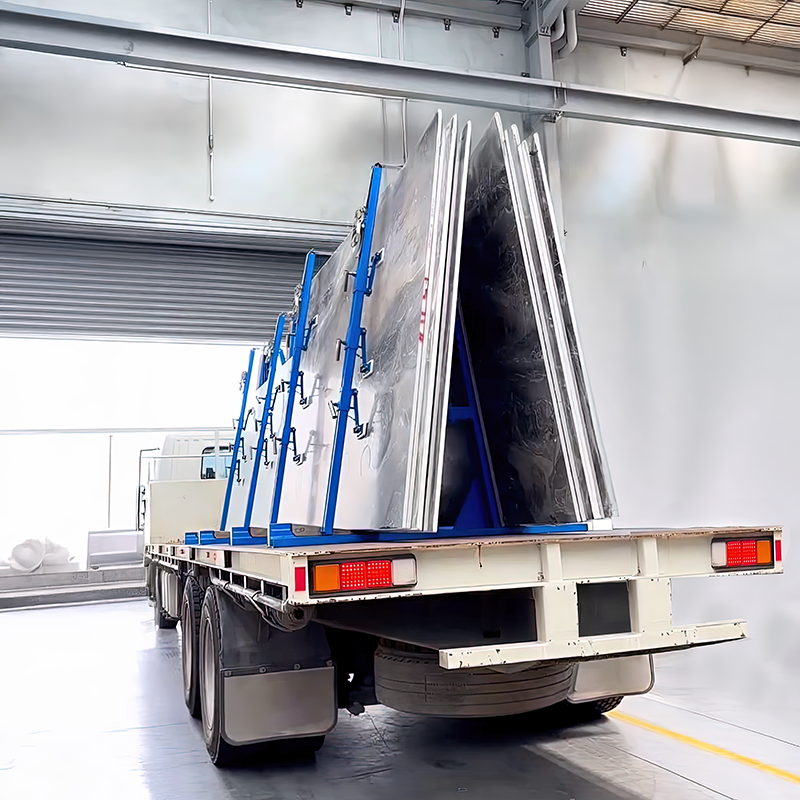

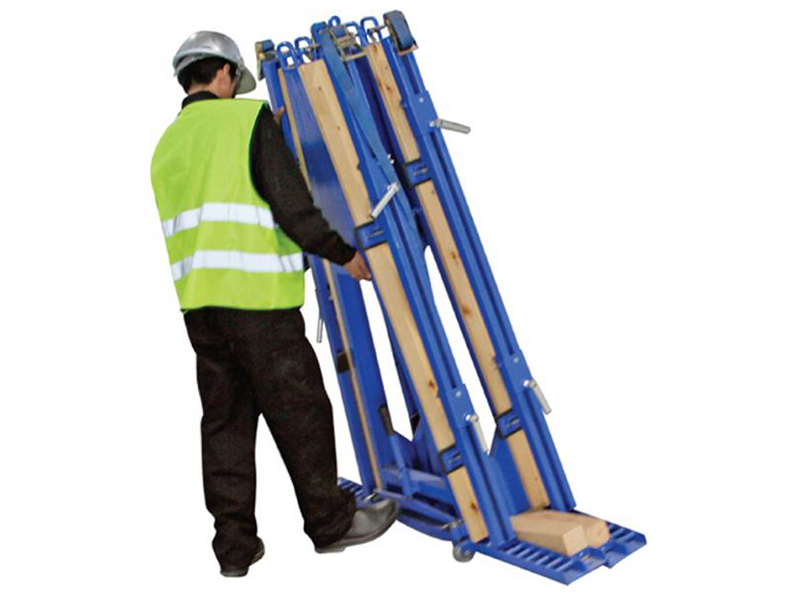

When not in use, the frame folds down quickly by pulling two spring-loaded pins and lowering the wheels with a cam lever. It’s easy to move around the shop or load onto a truck.

Features

Bolt holes in the base of the frame for optionally securing the Folding A-Frames to the vehicle.

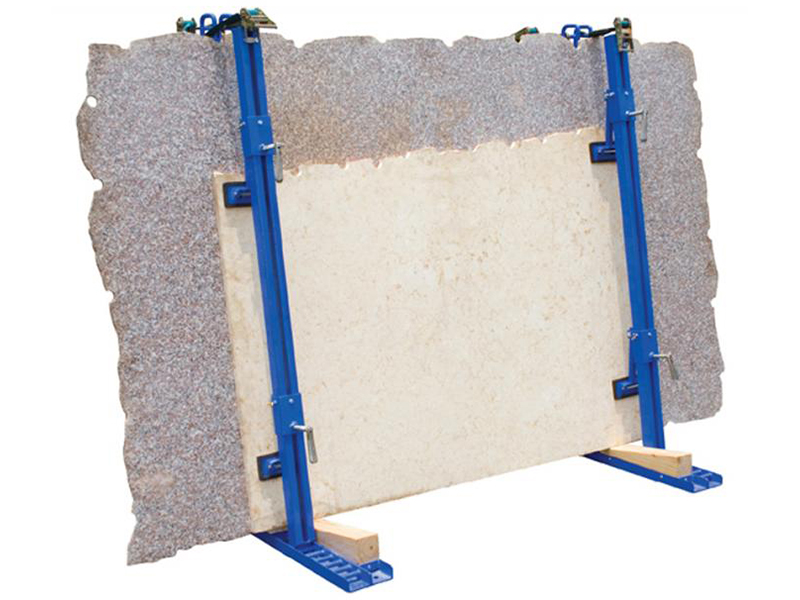

Granite is secured by rubber pads mounted on cleats, which are adjustable in height along the vertical locking bars.
Large hand-tightened wing nuts tighten the cleats to the vertical locking bars.
Powder-coated finish.

Specifications

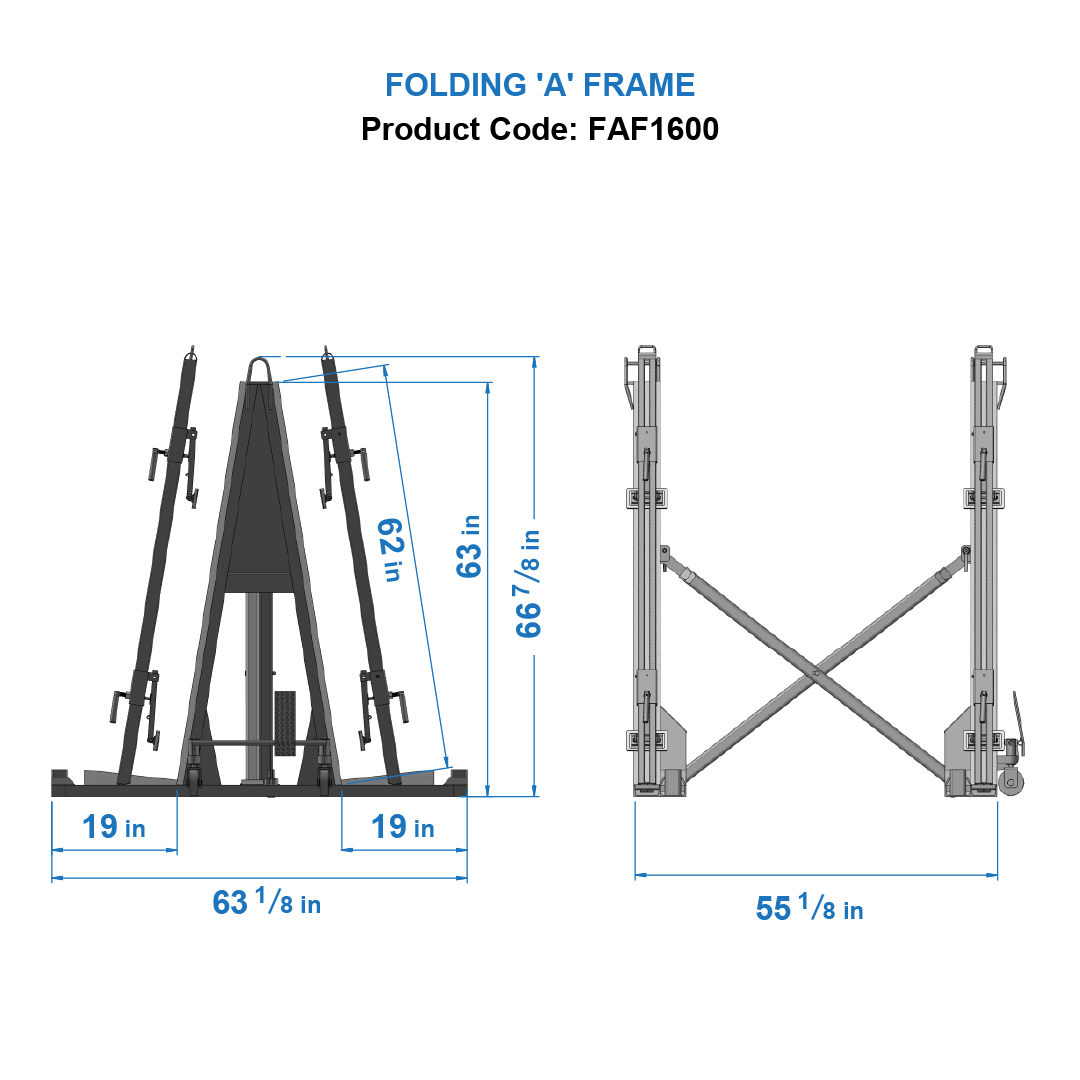

FAF1600

	Imperial
Width of slab storage base area on each side	15 1/4"
Working load limit per side	6614 lb
Total working load limit	13228 lb
Frame height	63"
Net weight	492 lb
Gross weight	518 lb
Packaging dimension	L.65" x W.19 3/4" x H.73 5/8"

Folding A-Frames

Watch our comprehensive product demonstration video showing how to use Folding A-Frames. Learn about key features, benefits, and setup instructions.

Watch full tutorial on YouTube
