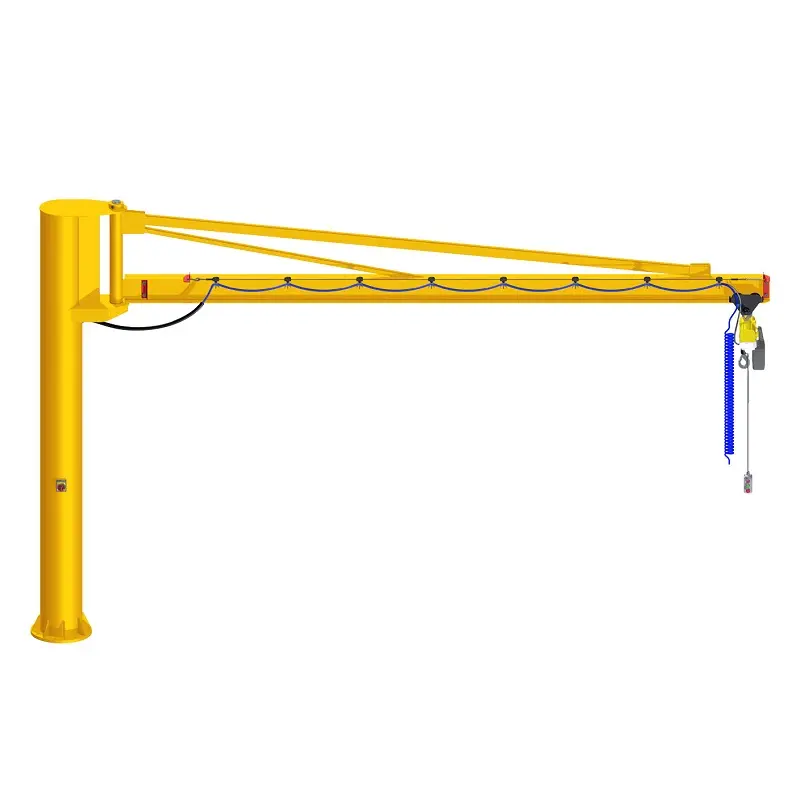

Over Braced Jib Crane - Column Mounted – Description
General
The Over Braced Jib Crane - Column Mounted provides economical hook coverage with 270° manual rotation. The over-braced, free-standing jib is useful where overhead cranes are not practical or feasible.
This type of jib crane gives 270° floor coverage, allowing unrestricted placement of machinery and equipment. This device can be combined with a vacuum lifter and an electric hoist to meet your specific needs.
Features
- Sealed roller-bearing pivot
- Highly durable design
- 270° rotation
- Over-braced design protects the running surface from dirt for minimal resistance
- Easy-moving hoist trolley
- Rubber end stop

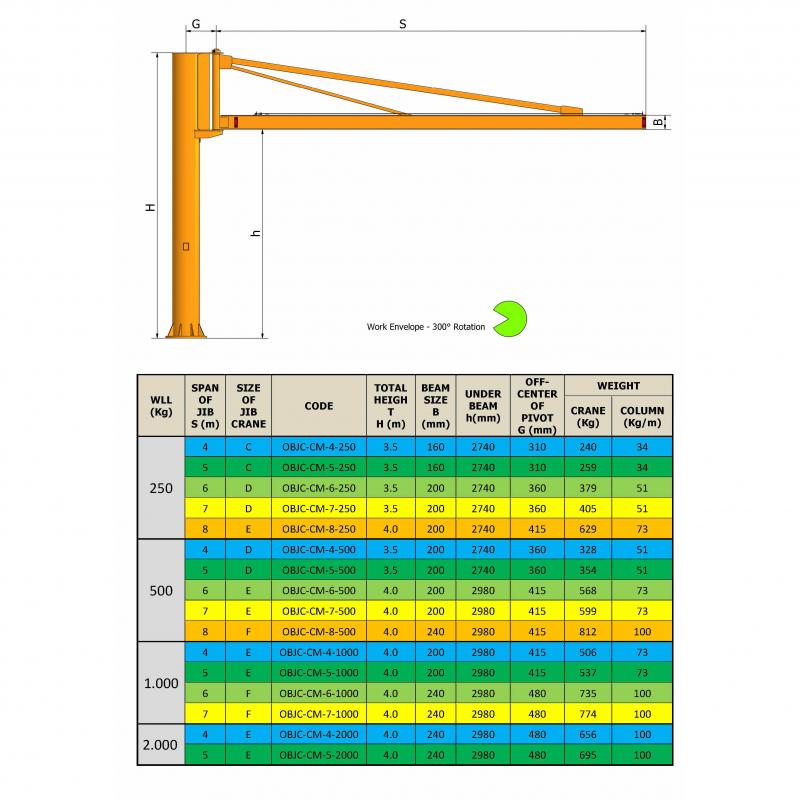

Specifications
Metric | Imperial | |
| Maximum spans | 7000 mm | 275 5/8" |
| Working load limit | 1000 kg | 2204 lb |
| Power supply | 220V 1 Phase 50-60Hz | - |
