Articulated Jib Crane - Column Mounted – Description
General

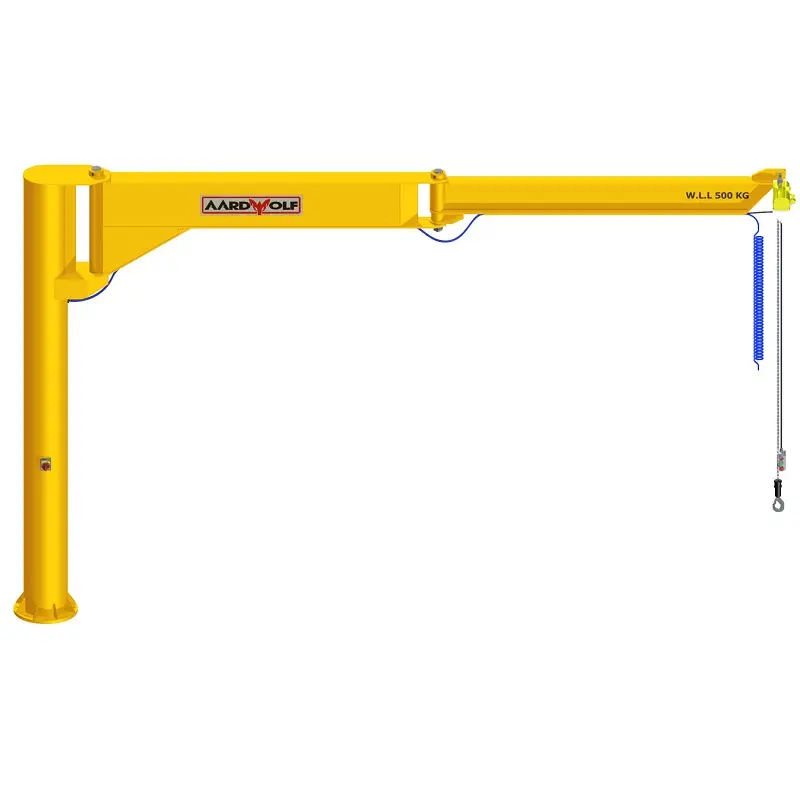

The Column Mounted Articulated Jib Crane is designed for material handling in areas with obstructions or limited space. It features a two-part arm that allows precise positioning of loads without requiring building support.
It supports either 270° or 360° manual rotation, depending on setup, and is commonly paired with electric hoists or vacuum lifters. Built with a robust structure, it is suitable for industrial environments requiring repeated lifting operations.
Features
Free-standing column installation
Articulated arm enables flexible load access
Manual rotation up to 270° or 360°
Sealed spherical bearings at pivot points
Steel construction for standard industrial tasks
Compatible with hoists and vacuum lifters
Specifications
Metric | Imperial | |
Maximum spans | 7000 mm | 275 5/8" |
Working load limit | 500 kg | 1102 lb |
Power supply | 220V 1-phase 50-60Hz | - |
