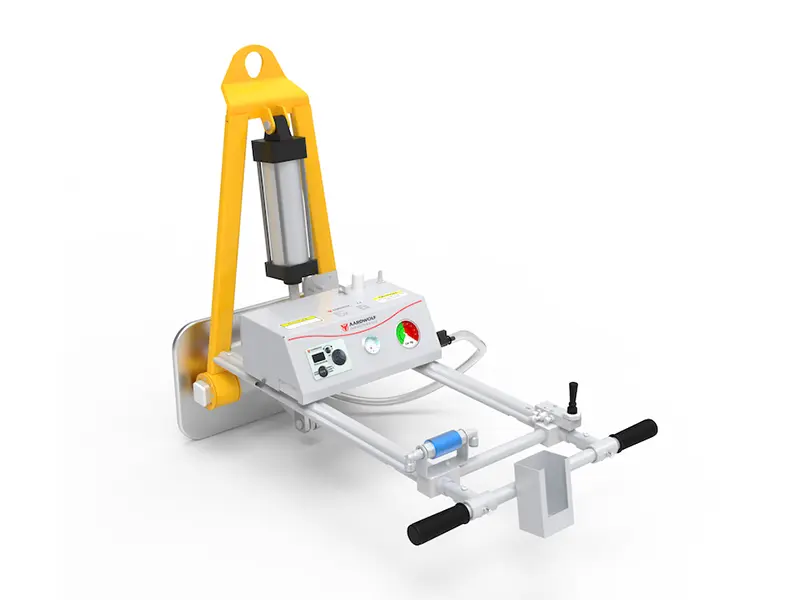

AVLP Vacuum Lifters

General

This advanced vacuum lifter is meticulously designed to accommodate the diverse needs of lifting smooth and rough marble and granite slab surfaces, embodying a superior and rugged construction. It not only facilitates the effortless lifting of heavy materials but also provides the capability to tilt them, allowing for precise positioning and handling. The core of its operation is powered by compressed air, ensuring reliable and efficient performance across various applications. This feature significantly enhances its versatility, making it an indispensable tool in environments where precision and durability are paramount, such as in workshops, construction sites, and manufacturing facilities dealing with stone materials.

Features

• Pneumatic vertical-horizontal tilting from 0 to 90° by a pneumatic piston.

• The vacuum tank ensures safe pickup in case of a sudden power break to the pump.

• A rechargeable 12V Li-on battery powers the audio and visual alarm system.

• Slide valve with ON/OFF position for attaching and releasing material.


Specifications

Vacuum Lifter AVLP1-250

	Metric	Imperial
Number of pads	1	-
Pad size	500 x 300 mm	19 3/4" x 11 3/4"
Working load limit	Vertical: 125 kg Horizontal:250 kg	276 lb 551 lb
Net weight	43 kg	95 lb
Gross weight	73 kg	161 lb
Packaging dimensions	L.1070 x W.390 x H.980 mm	L.42 1/8" x W.15 3/8" x H.38 5/8"




Vacuum Lifter AVLP2-500

	Metric	Imperial
Number of pads	2	-
Pad size	500 x 300 mm	19 3/4" x 11 3/4"
Working load limit	Vertical: 250 kg Horizontal:500 kg	551 lb 1102 lb
Net weight	80 kg	176 lb
Gross weight	109 kg	240 lb
Packaging dimensions	L.1480 x W.390 x H.960 mm	L.58 1/4" x W.15.3/8" x H.37 3/4"




Vacuum Lifter AVLP4-1000

	Metric	Imperial
Number of pads	4	-
Pad size	500 x 300 mm	19 3/4" x 11 3/4"
Working load limit	Vertical: 500 kg Horizontal:1000 kg	1102 lb 2204 lb
Net weight	94 kg	207 lb
Gross weight	134 kg	295 lb
Packaging dimensions	L.1680 x W.430 x H.960 mm	L.66 1/8" x W.16 7/8" x H.37 3/4"




Vacuum Lifter AVLP4-500L

	Metric	Imperial
Number of pads	4	-
Pad size	500 x 300 mm	19 3/4" x 11 3/4"
Working load limit	Vertical: 250 kg Horizontal: 500 kg	551 lb 1102 lb
Net weight	92 kg	203 lb
Gross weight	150 kg	331 lb
Packaging dimensions	L.2580 x W.430 x H.960 mm	L.101 5/8" x W.16 7/8" x H.37 3/4"




Battery information for the device

Battery code	GBA 12V 2.0Ah Bosch
Battery type	Lithium-ION
Voltage	12V
Current	2.0Ah
Số lượng	1
Continuous operation time with mode-saving pressure	2 hours
Working time with mode saving pressure	6 hours
Continuous operation time with mode audio alarm only	120 hours
Working time with mode audio alarm only	360 hours


Battery charger

Battery code	GAL 12V-40 Bosch
Input supply voltage	220-240VAC
Output voltage	12V
Output current	4.0Ah
Số lượng	1
Full charger time	0.5 hour
Weight	460 gram


Compressed air requirement

Air consumption	180 liters/minute
Supply air pressure	5 bars (72 psi)
