Hoists – Description
General
The Aardwolf AHKS-600 and AHHI-1S electric hoists are designed for vertical lifting tasks in various settings, including workshops, warehouses, and construction sites.
Both models offer reliable performance, with the Aardwolf hoist featuring a dual-hook system for flexible lifting capacities up to 600 kg, and the Hitachi hoist supporting loads up to 1000 kg with a durable chain mechanism.
Features

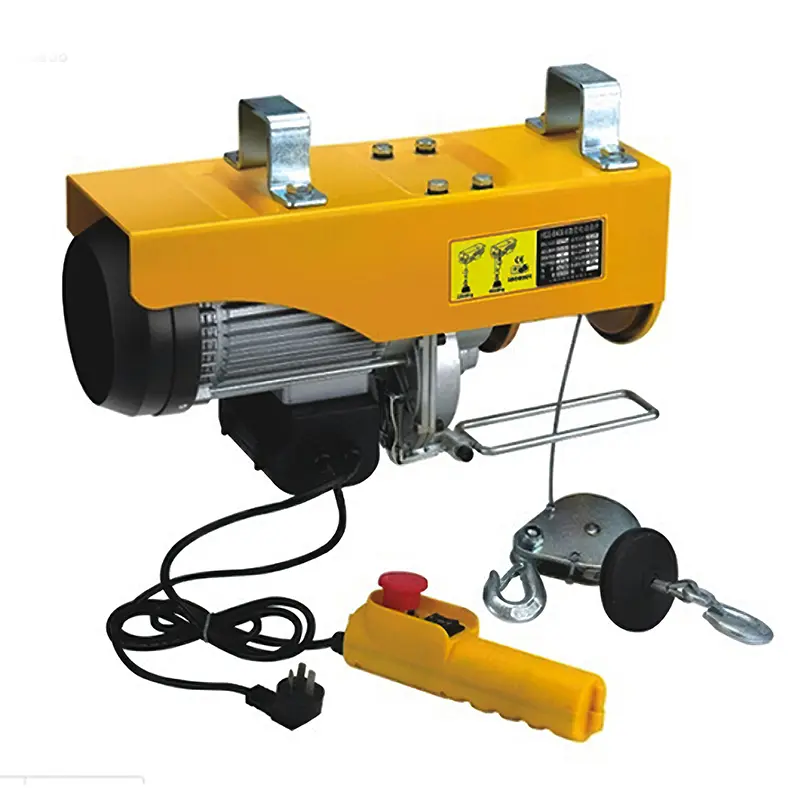

AHKS-600
Dual-hook system: Allows for single or double-line lifting, accommodating different load requirements.
Emergency brake function: Activates automatically in case of power failure, enhancing safety.
IP51-rated motor: Provides protection against dust and limited water exposure.
Lightweight design: Facilitates easy installation and portability.

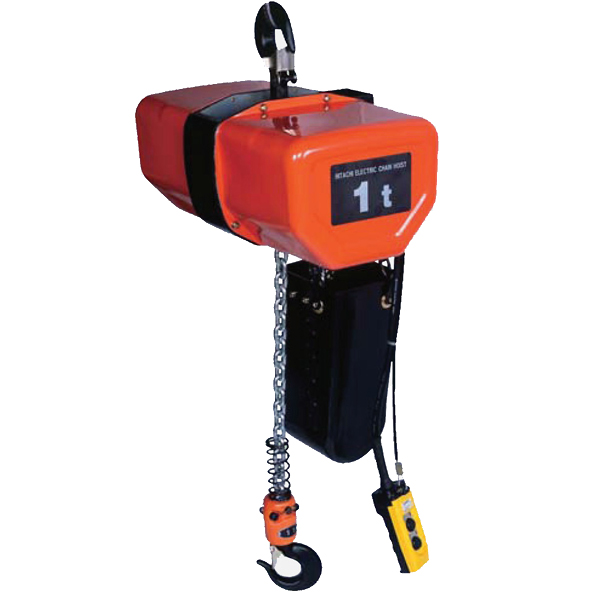

AHHI-1S
Electro-mechanical overload limiter: Prevents lifting loads beyond the rated capacity.
Electro-magnetic braking system: Ensures secure load holding and smooth operation.
IP54-rated protection: Offers resistance to dust and water ingress.
24V control voltage: Enhances operational safety.
CE & UKCA certified: Complies with international safety standards
Specifications
AHKS-600 | Metric | Imperial |
Load Capacity (Single/Double) | 300 / 600 kg | 661 / 2429 lbs |
Cable Length | 11m / 22 m | 7/16" / 7/8" |
Lifting speed (Single/Double) | 10m-5m/min | 3/8" - 1/4" / min |
Lifting height (Single/Double) | 20m/9m | 78 3/4" / 35 3/8" |
Voltage | 220V | - |
Cable Diameter | 4.5mm | 1/8" |
Power | 1050W | - |
Weight | 19.5 kg | 42.99 lbs |
