    DC Powered Vacuum Glass Lifters
    DC Powered Vacuum Glass Lifters

    DC Powered Vacuum Glass Lifters

    Grip Range Options

    • Feature Options
    Quantity

    Description

    General

    General

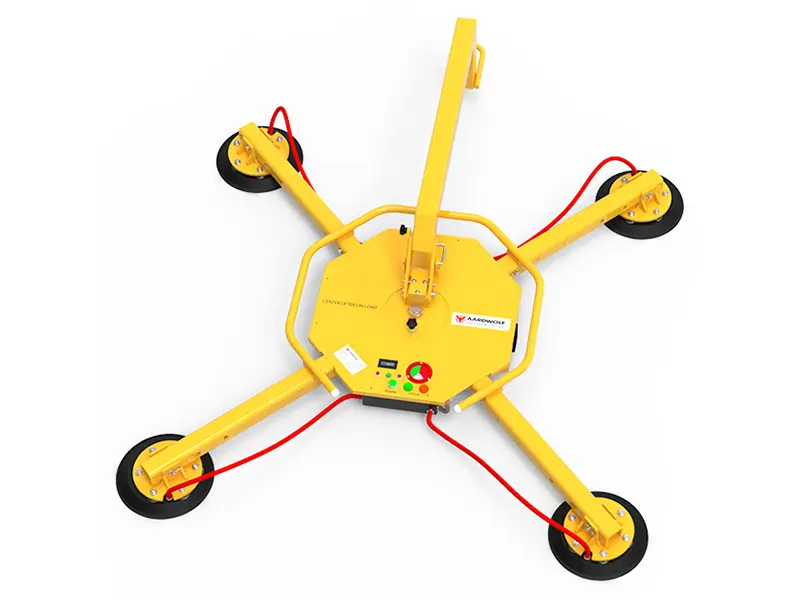

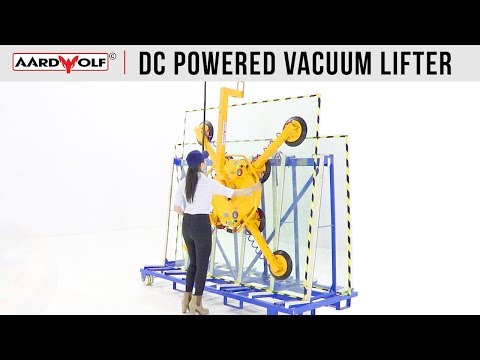

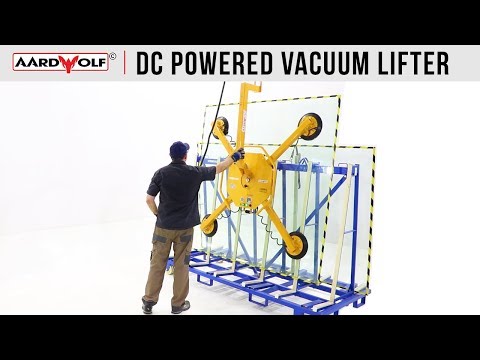

    The DC Powered Vacuum Glass Lifter ARGL500 is suitable for lifting and transporting glass elements of up to 500kg.  This device can be used to install windows and large glass sheets with the aid of a forklift, counterbalance crane, or overhead hoist.  On-board DC power systems provide cord-free operation at the job site.  Movable vacuum pads and extension arms allow the DC-Powered Vacuum Glass Lifter ARGL500 to handle nearly every size and shape of the glass.

    Features

    • Spring-loaded vacuum pads.
    • Manual rotation of 360° with 45° step.
    • Manual tilting by 90° in a 15° grid.
    • Four extension arms with the ability to extend and retract.
    • Automatic vacuum pumping system.
    • Visual and audible warning devices.
    • 12-volt battery power supply with high capacity.

    Specifications

    DC Powered Vacuum Glass Lifter ARGL-500


    Metric
    Imperial
    Number of pad 4 -
    Pad diameter 300 mm 11 3/4"
    Working load limit Vertical: 400 kg
    Horizontal: 500 kg     		882 lb
    1102 lb
    Net weight 69 kg 152 lb
    Gross weight 95 kg 209 lb
    Packaging dimensions L.1070 x W.970 x H.450 mm L.42 1/8" x W.38 1/4" x H.17 3/4"

    Battery information for the lifter

    Code batteryM12B6 Milwaukee
    Type of batteryLithium-ION
    Voltage12V
    Current6.0Ah
    Số lượng1
    Continuous operation time2 hours
    Working time6 hours

    Motor information

    Vacuum flow rate32.5 liters/minute
    Motor12V DC-4A


    DC Powered Vacuum Glass Lifter ARGL-500DS


    Metric
    Imperial
    Number of pad8-
    Pad diameter300 mm11 3/4"
    Working load limitVertical: 400 kg
    Horizontal: 500 kg    		882 lb
    1102 lb
    Net weight81 kg179 lb
    Gross weight107 kg236 lb
    Packaging dimensionsL.1070 x W.970 x H.450 mmL.42 1/8" x W.38 1/4" x H.17 3/4"

    Double redundancy with a load capacity of 500 kg (1102 lb).  Two independent vacuum circuits provide mutual aid in a system error.

    Battery information for the lifter

    Code battery M12B6 Milwaukee
    Type of battery Lithium-ION
    Voltage 12V
    Current 6.0Ah
    Số lượng 2
    Continuous operation time 2 hours
    Working time 6 hours

    Motor information

    Vacuum flow rate 32.5 liters/minute
    Motor 12V DC-4A







    Specifications
