    Home Vacuum Lifters Electric Vacuum Glass Lifters

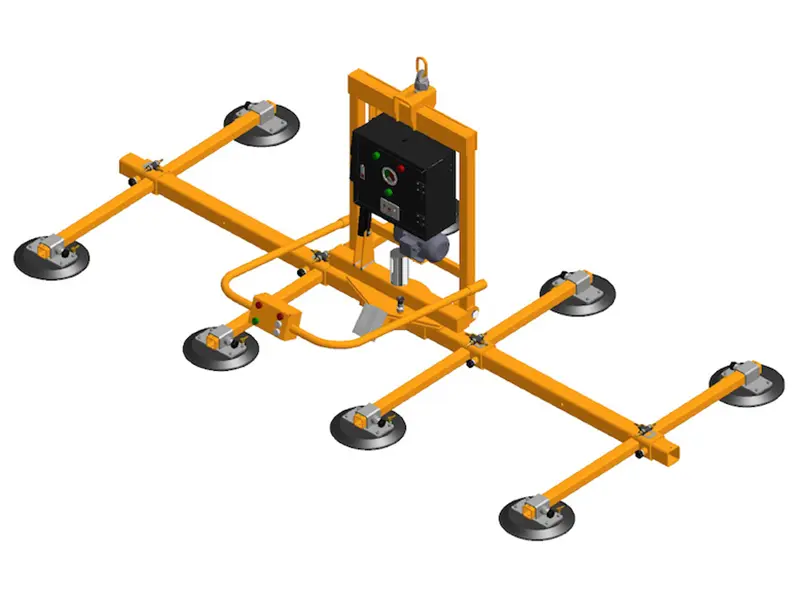

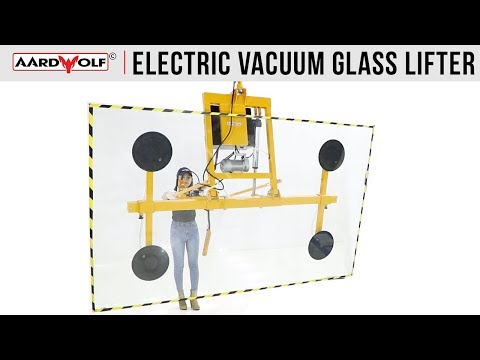

    Electric Vacuum Glass Lifters
    Electric Vacuum Glass Lifters

    Electric Vacuum Glass Lifters

    Grip Range Options

    • Weight Load Limit Options
    Quantity

    Description

    General

    General

    The Electric Vacuum Glass Lifters are designed for lifting and moving long glass sheets.  With a sturdy and durable structure, these lifters are ideal for working at large construction sites.  The flexible crossbar and stringer beams can also be adjusted easily, giving greater flexibility on-site.  With outstanding features supporting glass materials handling, these lifters are the solution for safety and efficiency seekers.

    Features

    • Handling of long glass sheets.

    • Equipped with an electric cabinet-operated.

    • Audio and visual alarm system.

    • Vertical-horizontal tilting from 0 to 90°.

    • Adjustable vacuum pads based on glass sizes.

    • Automatic vacuum pumping once the vacuum loss occurred.

    • Attach and release glass sheets by ON/OFF slide valve.

    • Safe and reliable.

    Specifications

    Electric Vacuum Glass Lifter AEPVGL-MR


    Metric
    Imperial
    Pad diameter300 mm overall
    		11 3/4"
    Tilting90 degrees-
    Manual rotation360 degrees-
    Working load limit500 kg1102 lb
    Net weight204 kg450 lb
    Packaging dimensionsL.3100 x W.1450 x H.510 mmL.122" x W.57 1/8" x H.20 1/8"

    Electric Vacuum Glass Lifter AEPVGL4-500


    Metric
    Imperial
    Pad diameter300 mm overall
    		11 3/4"
    Tilting90 degrees-
    Working load limitVertical: 400 kg
    Horizontal: 500 kg    		882 lb
    1102 lb
    Net weight145 kg320 lb
    Packaging dimensionsL.2050 x W.430 x H.1280 mmL.80 3/4" x W.16 7/8" x H.50 3/8"

    Electric Vacuum Glass Lifter AEPVGL8-800


    Metric
    Imperial
    Pad diameter300 mm overall
    		11 3/4"
    Tilting90 degrees-
    Working load limitVertical: 400 kg
    Horizontal: 800 kg    		882 lb
    1763 lb
    Net weight203 kg448 lb
    Packaging dimensionsL.3520 x W.485 x H.1270 mmL.138 5/8" x W.19 1/8" x H.50"

    Motor information AC 380V 3 phase 50/60Hz
    Vacuum flow rate: 4.1/4.7 m³/hour




    Specifications
