    Horizontal Stone Lifting Clamps – Description

    General

    General

    Handling and maneuvering concrete blocks and natural stones demand a specialised approach, and our advanced, durable clamps are engineered precisely for this purpose.  These robust clamps are suitable for integrating various lifting apparatuses such as cranes or forklift booms, ensuring versatility across different operational needs.  The high-friction rubber pads, designed for longevity and replaceability, offer continual protection for load surfaces from potential damage and maintain the integrity of the moving materials.

    The functionality of the clamps is further enhanced by their gravity-powered operational mechanics, ensuring that the clamp jaws are responsive and intuitive.  They are designed to automatically engage and release, opening on one lift and securely clamping down on the next, a feature that significantly streamlines the workflow.

    Features

    • An extensive gripping range, confirming the clamps' suitability for various tasks, from routine lifts to more complex material handling, increases their utility in various projects.

    • The construction includes hard-wearing, high-friction rubber pads that are built to last and are replaceable, ensuring that the clamp maintains optimal performance levels.  This design aspect is critical for the safety and efficiency of operations.

    • The clamps allow for the locking and unlocking of loads, requiring minimal manual intervention and thus enhancing operational safety and efficiency.

    • Specialised upgrade available: We provide an optional enhancement for those requiring additional functionality: a rotating pad and limit stop feature.

    The Integration of the Rotating Pad and Limit Stop Offers:

    • There is a significant boost in operational efficiency with the Horizontal Stone Lifting Clamp, which is equipped with rotating pads and a limit stop.  This specialised tool is essential for tasks requiring material rotation, accommodating horizontal and vertical directions.

    • The limit stop feature is instrumental in maintaining the distance between the clamp and the material for safety rotary.

    • The utility of the rotating pads goes beyond basic functionality, offering quick interchangeability, which is vital for the safe and efficient rotation of hefty materials like concrete blocks.

    Specifications

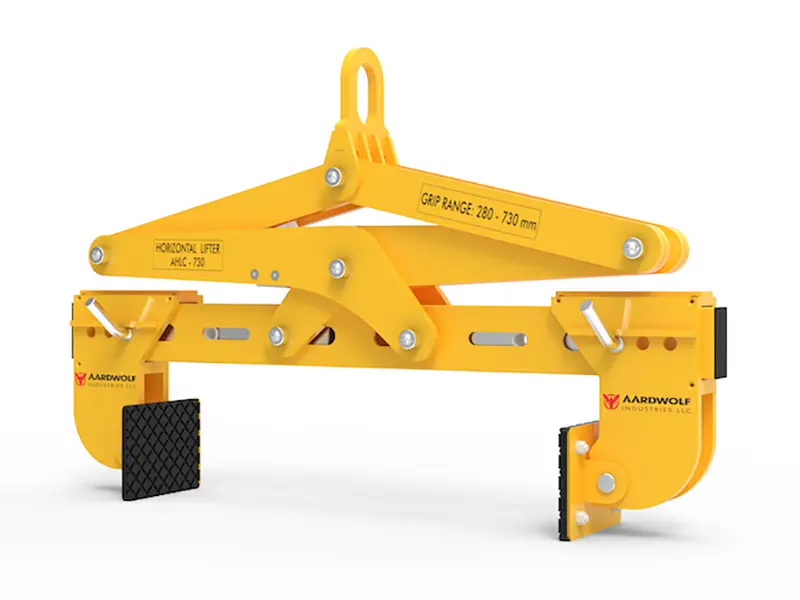

    Horizontal Stone Lifting Clamp AHLC730


    Metric
    Imperial
    Grip range 280 - 730 mm 11" – 28 3/4"
    Working load limit 1500 kg 3307 lb
    Net weight 112 kg 247 lb
    Gross weight 123 kg 271 lb
    Packaging dimensions L.1410 x W.530 x H.330 mm L.55 1/2" x W.20 7/8" x H.13"

    Horizontal Stone Lifting Clamp AHLC1050


    Metric
    Imperial
    Grip range280 - 1050 mm11" – 41 3/8"
    Working load limit1500 kg3307 lb
    Net weight121 kg267 lb
    Gross weight136 kg300 lb
    Packaging dimensionsL.1500 x W.530 x H.360 mmL.59" x W.20 7/8" x H.14 1/8"

    Horizontal Stone Lifting Clamp AHLC1370


    Metric
    Imperial
    Grip range280 - 1370 mm11" – 54"
    Working load limit1500 kg3307 lb
    Net weight124 kg273 lb
    Gross weight141 kg311 lb
    Packaging dimensionsL.1840 x W.530 x H.390 mmL.72 1/2" x W.20 7/8" x H.15 3/8"

    Horizontal Stone Lifting Clamp AHLC2010


    Metric
    Imperial
    Grip range280 - 2010 mm11" – 79 1/8"
    Working load limit1500 kg3307 lb
    Net weight137 kg302 lb
    Gross weight155 kg342 lb
    Packaging dimensionsL.2450 x W.530 x H.360 mmL.96 1/2" x W.20 7/8" x H.14 1/8"

    Horizontal Stone Lifting Clamp AHLC2010-4T


    Metric
    Imperial
    Grip range300 - 2010 mm11 3/4" – 79 1/8"
    Working load limit4000 kg8818 lb
    Net weight228 kg503 lb
    Gross weight248 kg547 lb
    Packaging dimensionsL.2450 x W.560 x H.440 mmL.96 1/2" x W.22" x H.17 3/8"











    Specifications
