    Transport Frames
    Transport Frames

    Transport Frames

    Grip Range Options

    • Working Load Limit Options
    • Finish Options
    • Optional Extras
    Quantity

    Description

    General

    General

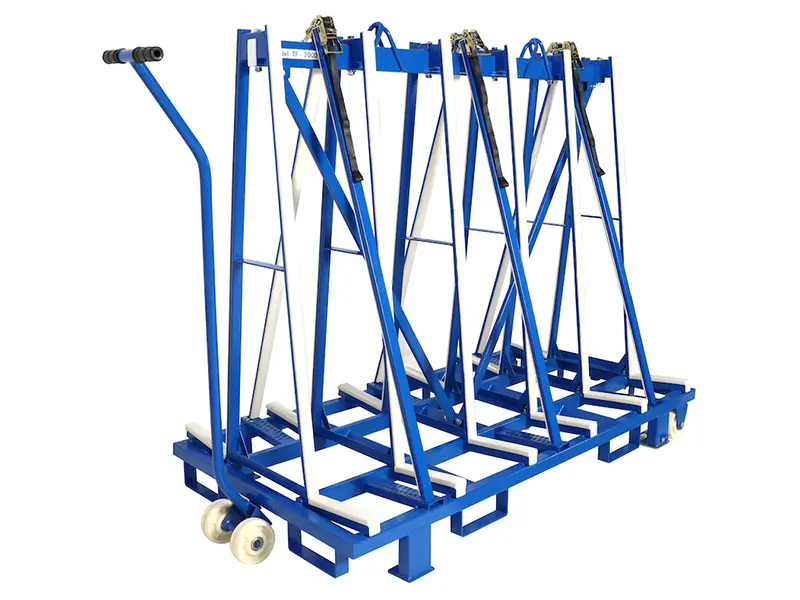

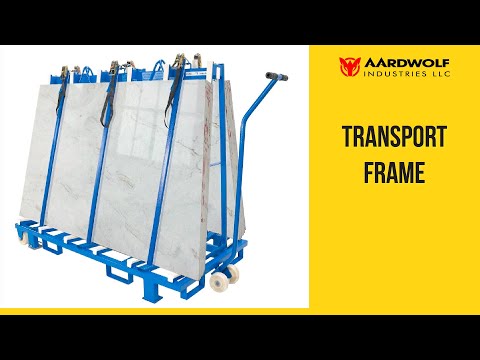

    The Transport Frames are a heavy-duty frame to transport granite, marble, engineered stone, glass and natural stone countertops.  Designed for both storage and transport, it features a powder-coated steel structure (optional galvanised finish), locking bars with ratchet straps and integrated forklift receivers for secure and efficient handling.  With rubber-coated supports to prevent surface damage and adjustable support legs for stability, these transport frames are essential for stone fabricators, suppliers and contractors.

    Features

    • Heavy-Duty Steel Frame: Powder-coated for durability, with an optional galvanised finish.

    • Secure Locking System: Locking bars and ratchet straps hold slabs firmly in place.

    • Rubber-Coated Supports: Prevents scratches and surface damage.

    • Forklift-Compatible Design: Built-in receivers for easy lifting and transport.

    • Adjustable Support Legs: Improves stability during truck transport.

    • Large Counter-Lever with Wheels: Allows manual movement when forklifts are unavailable.

    • High Load Capacity: Supports up to 2500kg (5511lb) for heavy slabs.

    Option: The frames can be hot galvanized and finished upon request.

    Note: Support legs should always be lowered when a loaded frame is being transported on a truck.

    Specifications

    Transport Frame TF2000


    Metric
    Imperial
    Number of wheels4 pc-
    Straps with each side6 pc-
    Width of slab storage base area on each side268 mm10 1/2"
    Length2000 mm78 3/4"
    Working load limit per side 1250 kg2756 lb
    Total working load limit2500 kg5511 lb
    Net weight of the total frame182 kg401 lb
    Net weight of caster handle8.7 kg19 lb
    Net weight of the frame without caster handle173.3 kg382 lb
    Gross weight188 kg414 lb
    Packaging dimensionL.2000 x W.1020 x H.420 mmL.78 3/4" x W.40 1/8" x H.16 1/2"

    Transport Frame TF2440


    Metric
    Imperial
    Number of wheels4 pc-
    Straps with each side6 pc-
    Width of slab storage base area on each side268 mm10 1/2"
    Length2440 mm96"
    Working load limit per side 1250 kg2756 lb
    Total working load limit2500 kg5511 lb
    Net weight of the total frame207 kg456 lb
    Net weight of caster handle8.7 kg19 lb
    Net weight of the frame without caster handle197 kg435 lb
    Gross weight213 kg470 lb
    Packaging dimensionL.2050 x W.1120 x H.420 mmL.80 3/4" x W.44 1/8" x H.16 1/2"

    Transport Frame TF3050


    Metric
    Imperial
    Number of wheels4 pc-
    Straps with each side6 pc-
    Width of slab storage base area on each side268 mm10 1/2"
    Length3050 mm120 1/8"
    Working load limit per side 1250 kg2756 lb
    Total working load limit2500 kg5511 lb
    Net weight of the total frame239 kg527 lb
    Net weight of caster handle8.7 kg19 lb
    Net weight of the frame without caster handle230 kg508 lb
    Gross weight245 kg540 lb
    Packaging dimensionL.3050 x W.1120 x H.420 mmL.120 1/8" x W.44 1/8" x H.16 1/2"

    Transport Frame TF3050H


    Metric
    Imperial
    Number of wheels4 pc-
    Straps with each side6 pc-
    Width of slab storage base area on each side268 mm10 1/2"
    Length3050 mm120 1/8"
    Working load limit per side 1250 kg2756 lb
    Total working load limit2500 kg5511 lb
    Net weight of the total frame182 kg401 lb
    Net weight of caster handle8.7 kg19 lb
    Net weight of the frame without caster handle173.3 kg382 lb
    Gross weight188 kg414 lb
    Packaging dimensionL.3050 x W.1030 x H.450 mmL.120 1/8" x W.40 1/2" x H.17 3/4"
