    Transport Frames - Heavy Duty – Description

    General

    General

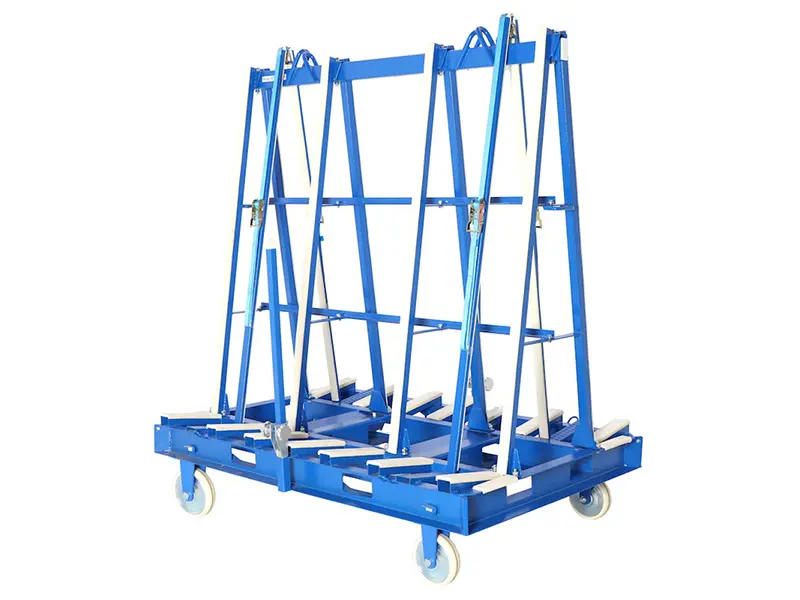

    The QP Frames are designed for delivering heavy sheets of glass and stone to construction sites where a robust and heavy frame is needed to lift the complete load and frame together onto building sites. The fully loaded frame can easily be moved around the floors on different levels of construction sites.

    Features

    • Sturdy and safe structure, designed to eliminate any risk of slabs tipping over.

    • Load-bearing surfaces are topped with rubber to prevent scratches and damage to goods being transported.

    • It contains two lifting eyes at the top frame for lifting frames on and off trucks with a crane.

    • It has four lifting points at the corner of the frame base for lifting loaded frames on and off trucks and onto building sites.

    • Handles are located at the end of a-frames.

    • Wheels with brakes to ensure safety in operation.

    • Four locking bars per frame are mounted in slotted holes on the bottom.

    • A powder-coated finish ensures an aesthetic feature as well as the durability of the product.

    Option: Frames can be hot galvanised and finished upon request.

    Transport Frame AF1850QP


    Metric
    Imperial
    Width of slab storage base area on each side295 mm11.6"
    Working load limit

    Fork End: 1100 kg
    Fork Side: 2500 kg
    Eyelet: 2500 kg
    Bow-Shackles:2500 kg
    Wheels: 2500 kg
    Stationary: 4000 kg

    2425 lb
    5511 lb
    5511 lb
    5511 lb
    5511 lb
    8818 lb

    Net weight246 kg542 lb
    Gross weight252 kg556 lb
    Packaging dimensionL.1850xW.1300xH.360 mmL.72.8"xW.51.2"xH.14.2"


    Transport Frame AF2440QP


    Metric
    Imperial
    Width of slab storage base area on each side323 mm12.7"
    Working load limit

    Fork End: 2000 kg
    Fork Side: 3000 kg
    Eyelet: 3000 kg
    Bow Shackles: 3000 kg
    Wheels: 2500 kg
    Stationary: 4000 kg

    4409 lb
    6614 lb
    6614 lb
    6614 lb
    5511 lb
    8818 lb

    Net weight281 kg619 lb
    Gross weight287 kg633 lb
    Packaging dimensionL.2450xW.1240xH.360 mmL.96.5"xW.48.8"xH.14.2"
