    Wolf Rack Pockets
    Wolf Rack Pockets

    Wolf Rack Pockets

    Grip Range Options

    • Size Option
    Quantity

    Description

    General

    General

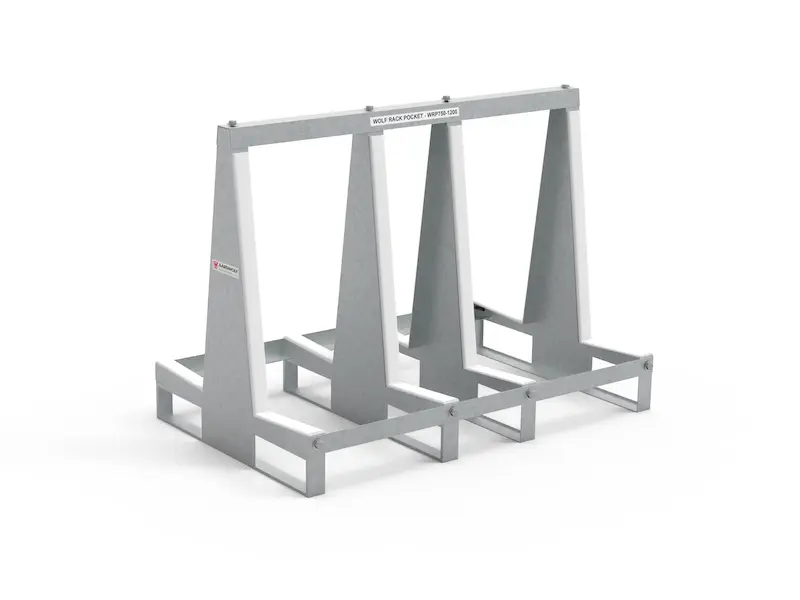

    The Wolf Rack has an A-frame structure manufactured from 2mm thick sheet metal.  The frames have an open structure.  The tops of the individual A-frames contain rivet nuts and are bolted into a U-shaped tie bar with self-aligning bolts, while load bars are fitted into slots at the base of the A-frames on each side.  The load bars are also fastened by self-aligning bolts screwed into rivet nuts, which are permanently fixed at the base of the A-frames.  This produces a rigid connection and allows assembly without special skills and only one tool.

    Features

    • The Wolf Rack transport racks include several modular A-frames formed from 2mm sheet metal secured to one another.

    • Frame-bearing surfaces are rubber-topped, sloping inwards, while perpendicular support surfaces are cushioned with resilient rubber material to protect and retain the materials loaded upon the transport racks.

    • The bearing surfaces are configured to be as low as possible in the A-frame of the Wolf Rack transport rack to provide for a minimal lift height for loading and unloading while at the same time-space is also available for the forks of a forklift truck and pallet jacks.

    • The bearing surfaces are configured to be as low as possible in the A-frame of the Wolf Rack transport rack to provide for a minimal lift height for loading and unloading while at the same time-space is also available for the forks of a forklift truck and pallet jacks.

    • The Wolf Rack has an A-frame structure that is reducible to a compact empty shipping size by one worker using one tool.

    • The Wolf Racks are assembled from a few parts, reducing the assembly and disassembly time and making the operation simple.

    • Further, the compacted Wolf Racks are light so that they can be manhandled into a van or onto a truck for return shipping.

    Options:

    • Optionally includes clip-on safety posts, which urge the carried objects against the A-frame assembly to provide for secure transportation of large objects, such as stone and glass sheets while being moved on the concrete floor in factories and on construction sites.

    • It also optionally includes quick-fit wheels and handles using the same bolts and tools used to assemble the frame.

    • Aardwolf offers many types of Wolf Racks, such as the standard Wolf Rack range as well as Single Sided Wolf Racks.

    Specifications

    WRP750/1200:


    Metric
    Imperial
    Working load limit1000 kg2204 lb
    Width of each side276 mm10 7/8"
    Weight43 kg95 lb

    WRP750/1600:


    Metric
    Imperial
    Working load limit1000 kg2204 lb
    Width of each side276 mm10 7/8"
    Weight60 kg132 lb

    WRP750/2000:


    Metric
    Imperial
    Working load limit1200 kg2645 lb
    Width of each side276 mm10 7/8"
    Weight72 kg159 lb

    WRP1000/1200:


    Metric
    Imperial
    Working load limit1000 kg2204 lb
    Width of each side252 mm9 7/8"
    Weight48 kg106 lb

    WRP1000/1600:


    Metric
    Imperial
    Working load limit1000 kg2204 lb
    Width of each side252 mm9 7/8"
    Weight66 kg146 lb

    WRP1000/2000:


    Metric
    Imperial
    Working load limit1200 kg2645 lb
    Width of each side252 mm9 7/8"
    Weight78 kg172 lb

    WRP1270/1200:


    Metric
    Imperial
    Working load limit1000 kg2204 lb
    Width of each side230 mm9"
    Weight51 kg112 lb

    WRP1270/1600:


    Metric
    Imperial
    Working load limit1000 kg2204 lb
    Width of each side230 mm9"
    Weight70 kg154 lb

    WRP1270/2000:


    Metric
    Imperial
    Working load limit1200 kg2645 lb
    Width of each side230 mm9"
    Weight83 kg183 lb








    Specifications
