Wolf Racks Single Side

General

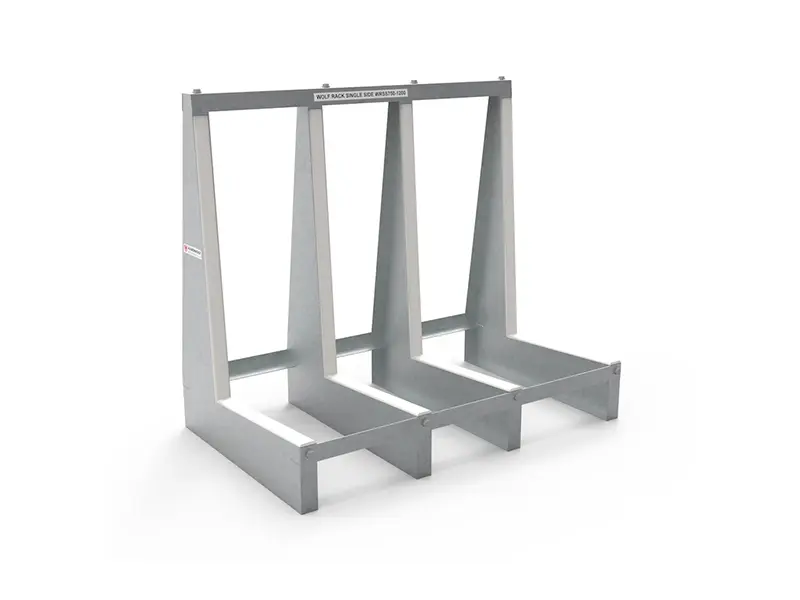

The Wolf Rack has an A-frame structure manufactured from 2mm thick sheet metal.  The frames have an open structure.  The tops of the individual A-frames contain rivet nuts and are bolted into a U-shaped tie bar with self-aligning bolts, while load bars are fitted into slots at the base of the A-frames on each side.  The load bars are also fastened by self-aligning bolts screwed into rivet nuts, which are permanently fixed at the base of the A-frames.  This produces a rigid connection and allows assembly without special skills and only one tool.

Features

• The Wolf Rack transport racks include several modular A-frames formed from 2mm sheet metal secured to one another.

• Frame-bearing surfaces are rubber-topped, sloping inwards, while perpendicular support surfaces are cushioned with resilient rubber material to protect and retain the materials loaded upon the transport racks.

• The bearing surfaces are configured to be as low as possible in the A-frame of the Wolf Rack transport rack to provide for a minimal lift height for loading and unloading while at the same time-space is also available for the forks of a forklift truck and pallet jacks.

• The Wolf Racks are lightweight yet strong and easily assembled and disassembled.

• The Wolf Rack has an A-frame structure that is reducible to a compact empty shipping size by one worker using one tool.

• The Wolf Racks are assembled from a few parts, reducing the assembly and disassembly time and making the operation simple.

• Further, the compacted Wolf Racks are light so that they can be manhandled into a van or onto a truck for return shipping.


Options:

• Optionally includes clip-on safety posts, which urge the carried objects against the A-frame assembly to provide for secure transportation of large objects, such as stone and glass sheets, while moving on the concrete floor in factories and construction sites.

• It also optionally includes quick-fit wheels and handles using the same bolts and tools used to assemble the frame.

• Aardwolf offers many types of Wolf Racks, such as the standard Wolf Rack range as well as Wolf Racks with forklift pockets.
