    AVGLP Rotate Vacuum Glass Lifters
    AVGLP Rotate Vacuum Glass Lifters

    AVGLP Rotate Vacuum Glass Lifters

    Grip Range Options

    • Weight Load Limit Options
    • Power Source
    • Tilt
    • Rotation
    • Material Surface
    Quantity

    Description

    General

    General

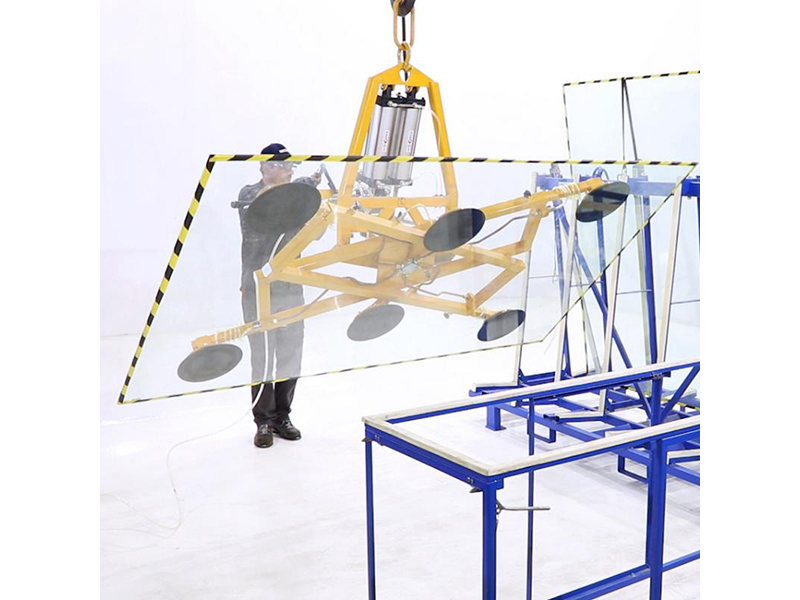

    The Rotate Vacuum Glass Lifter range is designed to lift, tilt and rotate glass and porcelain sheets.  In addition, the extended bars are equipped to widen the lifting coverage area.

    Features

    • Pneumatic vertical-horizontal tilting from 0 to 90°

    • 90° rotation manually or by the air cylinder depending on model

    • Automatic vacuum pumping if vacuum loss occurs

    • Audio/visual warning system

    • Attach/release materials using the ON/OFF slide valve

    Specifications

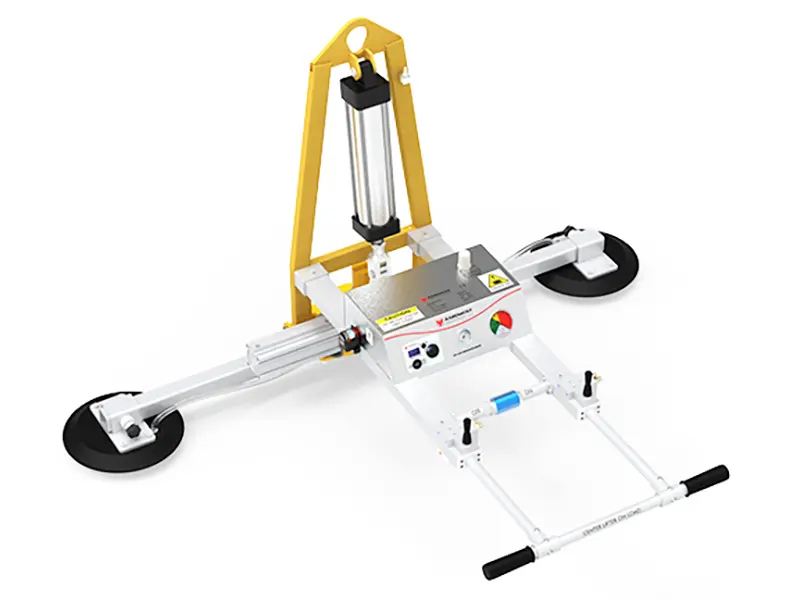

    Auto Rotate Vacuum Glass Lifter AVGLP2-AR


    Metric
    Imperial
    Number of pads2-
    Pad diameter300 mm
    		11 3/4"
    Working load limit200 kg441 lb
    Net weight60 kg132 lb
    Packaging dimensionsL.860 x W.710 x H.1170 mmL.33 7/8" x W.28" x H.46"

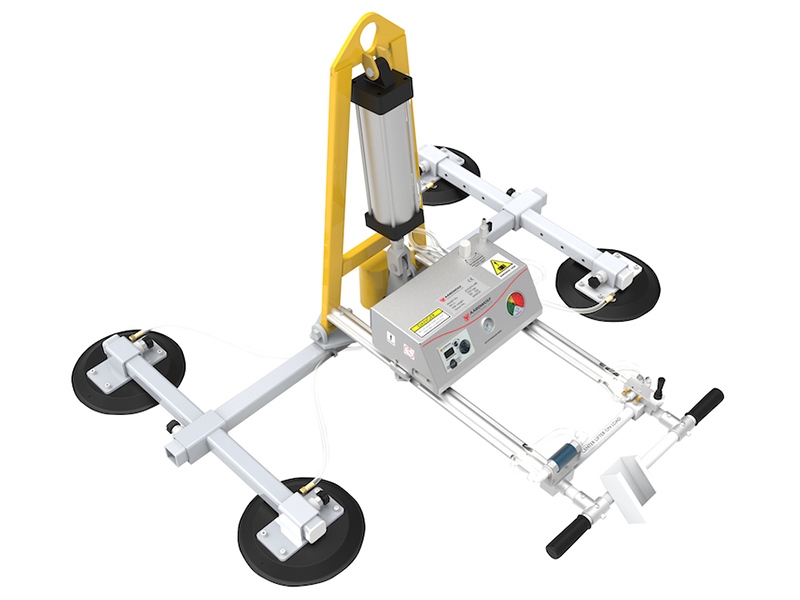

    Manually Rotate Vacuum Glass Lifter AVGLP4MR-250


    Metric
    Imperial
    Number of pads4-
    Pad diameter300 mm
    		11 3/4"
    Working load limit250 kg551 lb
    Net weight81 kg179 lb
    Packaging dimensionsL.1480 x W.380 x H.1190 mmL.58 1/4" x W.15" x H.46 7/8"

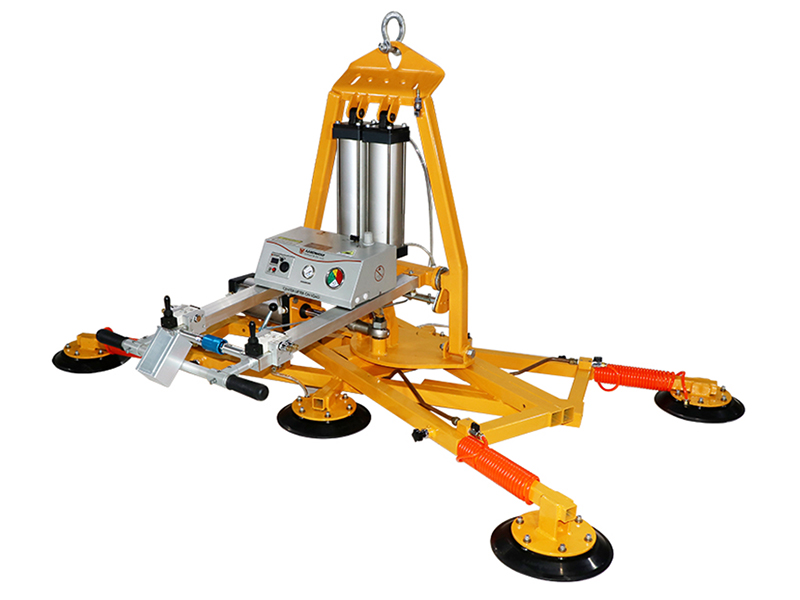

    Auto Rotate Vacuum Glass Lifter AVGLP6-500


    Metric
    Imperial
    Number of pads6-
    Pad diameter300 mm
    		11 3/4"
    Working load limit500 kg1102 lb
    Net weight173 kg381 lb


    Battery information for the alarm system

    Power supply 3.7V Lipo battery
    Battery capacity 2000 mAh x 1
    Standby time 720 hours
    Charging cycle 1000 times
    Charging time 2 hours
    Non-stop working time 7 hours
    6-month warranty -


    Compressed air requirement

    Air consumption180 liters/minute
    Supply air pressure5 bars (72 psi)
